Driven pulley
6
Parts Diagram
Parts Catalog
Front shield
by
Selectors - Switches - Buttons

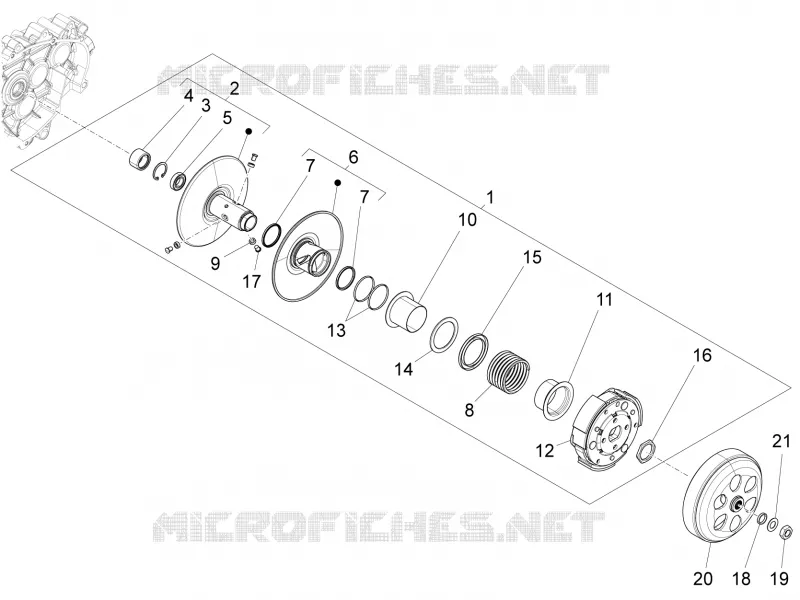

Driven pulley
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Driven pulley complete with clutch
CM167102
£270,07 Unit Price incl. VAT
2
Complete fixed driven half-pulley
B017979
£123,98 Unit Price incl. VAT
3
Snap ring
006628
Not Available
4
Roller cage 22x29x18
B014169
Not Available
5
Ball bearing
880512
£15,17 Unit Price incl. VAT
6
Complete movable half-driven pulley
B017974
£38,81 Unit Price incl. VAT
7
Gasket ring
289950
£10,18 Unit Price incl. VAT
8
Variator spring
B013304
£27,70 Unit Price incl. VAT
9
Roller
431091
£2,78 Unit Price incl. VAT
10
Pulley side cap
880539
£21,85 Unit Price incl. VAT
11
Clutch side cap
880543
£22,02 Unit Price incl. VAT
12
Complete centrifugal clutch assembly
CM1672015
£103,85 Unit Price incl. VAT
13
Gasket
289840
£2,44 Unit Price incl. VAT
14
Sliding washer
880540
£12,94 Unit Price incl. VAT
15
Spring seat
880541
£13,37 Unit Price incl. VAT
16
Ring nut
289955
£13,28 Unit Price incl. VAT
17
Pin
B014466
£2,51 Unit Price incl. VAT
18
Spacer
B014652
£1,45 Unit Price incl. VAT
19
Nut
B016992
£2,22 Unit Price incl. VAT
20
Clutch drum
B017265
Not Available
21
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
