Engine displacement
125
2
Model
946
3
Year
2015
4
Trim
946 ARMANI 125 4T 3V ABS E3
5
Parts Catalog
Crankcase cover - Crankcase cooling
6
Parts Diagram
Parts Catalog
Rear wheel
by
Central cover - Footrests
Crankcase cover - Crankcase cooling
1
2
2
3
4
5
6
7
8
9
10
11
12
1
Transmission cover with U.P.
B0169455
£117,73 Unit Price incl. VAT
2
Pin 6,5x9,5x15
239388
Not Available
3
Radial bearing 15x35x11
4789853
£5,38 Unit Price incl. VAT
4
Snap ring
006635
Not Available
5
screw M6x35
414838
£1,27 Unit Price incl. VAT
6
Cover gasket
1A001027
£1,72 Unit Price incl. VAT
7
Cooling cover
B018342
£36,94 Unit Price incl. VAT
8
Filtering element
B018345
£9,88 Unit Price incl. VAT
9
Bushing
B015908
£6,92 Unit Price incl. VAT
10
Hex socket screw M5x14
B016455
£1,27 Unit Price incl. VAT
11
Retainer buffer
871458
£1,72 Unit Price incl. VAT
12
Transmission cover
1A0050265
£24,14 Unit Price incl. VAT

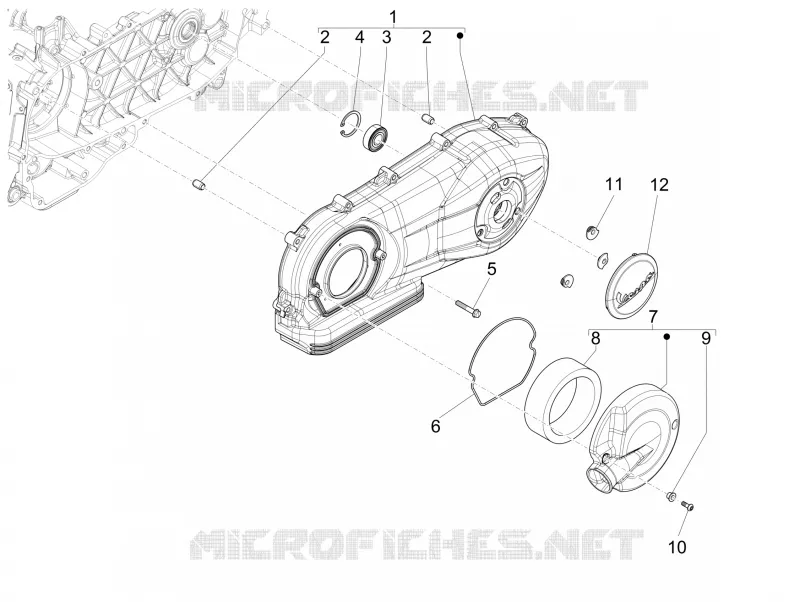

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
