1
Engine displacement
400
2
Model
BEVERLY
3
Year
2006
4
Trim
Beverly ie E3
5
Parts Catalog

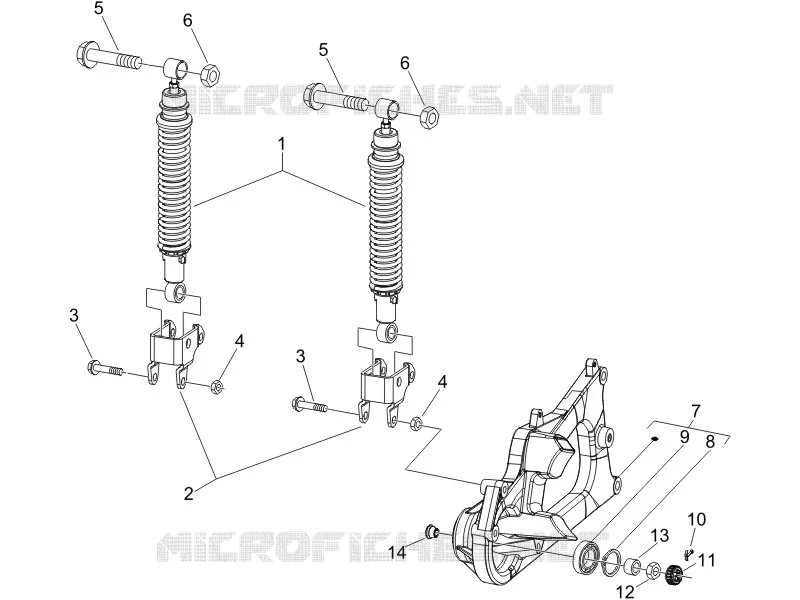

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fork's components (Kayaba)
by
Front wheel
Rear suspension - Shock absorber/s
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
1
Rear shock absorber
56210R
£205,40 Unit Price incl. VAT
2
Bracket
598232
£12,36 Unit Price incl. VAT
3
Hex socket screw
598831
Not Available
4
Nut M8
020008
Not Available
5
Screw w/ flange
598838
£2,17 Unit Price incl. VAT
6
Self locking nut M10
232108
Not Available
6
Self locking nut M10
002440
Not Available
7
Exaust pipe support
847254
Not Available
8
Circlip
006647
Not Available
9
Ball bearing
82545R
£22,90 Unit Price incl. VAT
10
Split pin
012789
Not Available
11
Nut hold cap
194423
Not Available
12
Nut M16x13
563728
£2,48 Unit Price incl. VAT
13
Spacer
597528
£7,33 Unit Price incl. VAT
14
Wheel spacer
848039
£25,44 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
