1
Engine displacement
125
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 125 4T ie ABS Euro 4
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
ENGINE ASSEMPLY

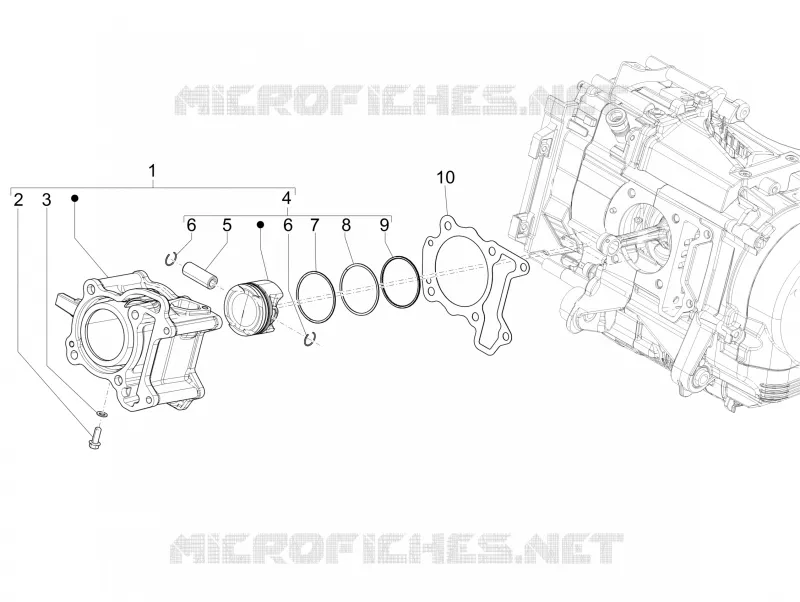

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
6
7
8
9
10
1
Groupe cylindre - piston - axe
1A015138
Not Available
2
Screw w/ flange M6x16
1A004277
£1,82 Unit Price incl. VAT
3
Flat washer
1A004280
£1,62 Unit Price incl. VAT
4
Piston complet
1A0155460B
Not Available
4
Piston complet
1A0155460C
Not Available
4
Piston complet
1A0155460A
Not Available
4
Piston complet
1A0155460D
£82,98 Unit Price incl. VAT
5
Axe
1A014567
£11,88 Unit Price incl. VAT
6
Circlip
B015602
£2,93 Unit Price incl. VAT
7
Compression ring 1° cava
879475
£13,08 Unit Price incl. VAT
8
Compression ring 2° cava
879476
£13,08 Unit Price incl. VAT
9
Oil scraper ring 3° cava
B016862
£13,08 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,8 mm
1A000752
£11,66 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,6 mm
1A000751
£11,72 Unit Price incl. VAT
10
Crankcase/cylinder gasket 0,4 mm
1A000750
£11,06 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
