1
Engine displacement
125
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 125 4T ie ABS Euro 4
5
Parts Catalog
REAR WHEEL
6
Parts Diagram
Parts Catalog
Front shield
by
Remote control switches - Battery - Horn

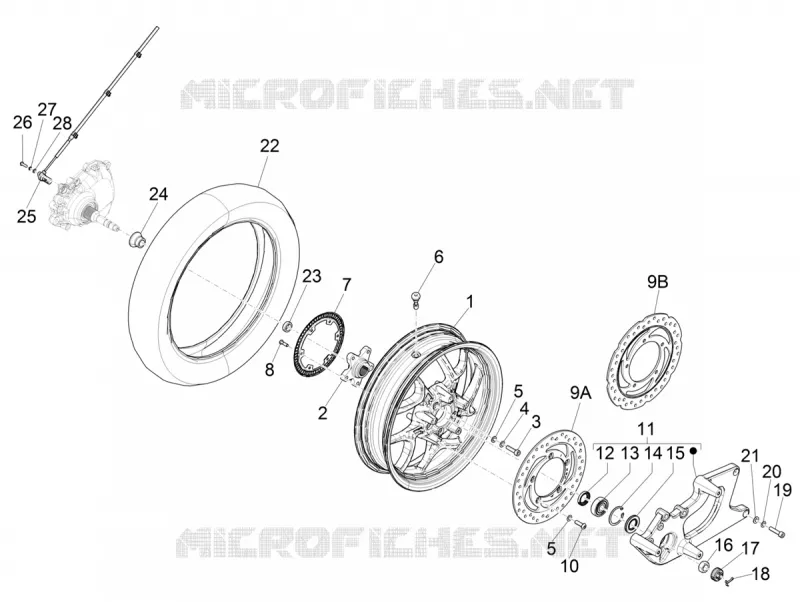

REAR WHEEL
1
2
3
4
5
5
6
7
8
9A
9B
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Roue arrière 14"x3.50"
1C004730R00XNM
£187,51 Unit Price incl. VAT
1
Roue arrière 14"x3.50"
1C004730R00EU
£187,51 Unit Price incl. VAT
2
Moyeu roue arr.
1C000945
£20,52 Unit Price incl. VAT
3
screw M8x30
015792
Not Available
4
Spring washer
709047
£0,70 Unit Price incl. VAT
5
Flat washer 15x8,4x1,5
003058
Not Available
6
Tubeless valve
597679
£6,16 Unit Price incl. VAT
7
Roue phonique ABS
1A004917
£10,85 Unit Price incl. VAT
8
Hex socket screw M6x20
667152
£1,27 Unit Price incl. VAT
9A
Disque de frein arrière
1C004559
£75,86 Unit Price incl. VAT
9B
Disque de frein arrière
1C004557
£73,09 Unit Price incl. VAT
10
Vis à tête bombée Torx
1C004053
£2,00 Unit Price incl. VAT
11
Bras de suspension droit complet
1A016464
£311,21 Unit Price incl. VAT
12
Gasket ring 25-47-5
1A005943
£4,06 Unit Price incl. VAT
13
Ball bearing
82545R
£22,90 Unit Price incl. VAT
14
Circlip
006647
Not Available
15
Gasket ring 25-37-6
1A005942
£3,77 Unit Price incl. VAT
16
Nut M16x13
563728
£2,48 Unit Price incl. VAT
17
Nut hold cap
194423
Not Available
18
Split pin
5A000046
£3,26 Unit Price incl. VAT
19
Vis M8x24
1A004486
£0,95 Unit Price incl. VAT
20
Spring washer
709047
£0,70 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
Not Available
22
Pneu arrière Michelin 120/70-14"
1C004435
£181,02 Unit Price incl. VAT
22
Pneu arrière Maxxis 120/70 - 14"
1C004496
Not Available
23
Spacer
1C002175
£8,27 Unit Price incl. VAT
24
Rear wheel spacer
1C002344
£16,13 Unit Price incl. VAT
25
Capteur arrière ABS
1D0030105
Not Available
26
Torx Screw
880285
£1,24 Unit Price incl. VAT
27
Flat washer
669282
£2,36 Unit Price incl. VAT
28
Washer Ø5,3xØ10x0,5
006975
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
