Engine displacement
150
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 150 4T ie ABS Euro 4
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
CENTRAL COVER - FOOTRESTS
by
Front wheel
Fuel tank
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Réservoir de carburant complet.
1B002950
£218,29 Unit Price incl. VAT
2
Indicateur niveau essence
1D001226
£49,75 Unit Price incl. VAT
3
Gasket
676200
£19,80 Unit Price incl. VAT
4
Nut
709116
£1,72 Unit Price incl. VAT
5
Flat washer 16x6,5x1,5
013880
Not Available
6
Kit serrures
1B004018
£324,80 Unit Price incl. VAT
7
Hex socket screw M4x16
959559
£1,27 Unit Price incl. VAT
8
Tubulure rempl.rés.ess.
1B003970
£42,65 Unit Price incl. VAT
9
Hose
673778
£32,11 Unit Price incl. VAT
10
Hose clamp
CM001920
£3,65 Unit Price incl. VAT
11
Hose clamp
CM001919
£2,35 Unit Price incl. VAT
12
Hex screw M6x20
018639
Not Available
13
Spring washer 6,4x11,8x1
016406
Not Available
14
Flat washer 16x6,5x1,5
013880
Not Available
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Pompe à carburant
1D002701
£76,87 Unit Price incl. VAT
17
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
18
Gasket
1B002953
£2,21 Unit Price incl. VAT
19
Bride pompe essence
1B002952
£3,02 Unit Price incl. VAT
20
Self locking nut M5
241937
Not Available
21
Tuyau de carburant compl.
1B005553R
£83,00 Unit Price incl. VAT
22
Wiring clip
1B001321
£4,37 Unit Price incl. VAT
23
Screw w/ flange M6x10
969296
£1,27 Unit Price incl. VAT
24
Non return spring
CM006911
£43,00 Unit Price incl. VAT
25
Reniflard complet
1B0027645
£41,48 Unit Price incl. VAT
26
Safety valve
1B005112R
£43,06 Unit Price incl. VAT
27
Patte de blocage tuyau carburant
1B004100
£1,39 Unit Price incl. VAT
28
Stop nut M5-6H DIN 985
804457
£1,07 Unit Price incl. VAT

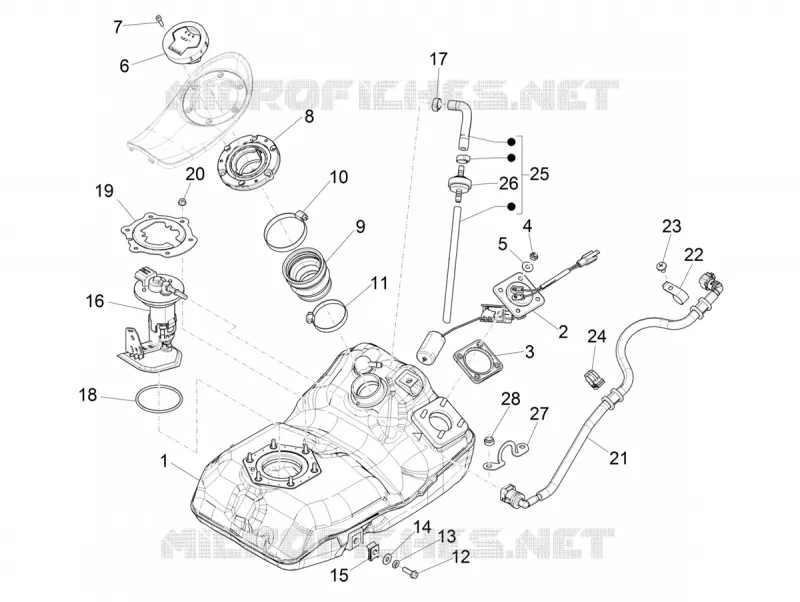

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
