1
Engine displacement
125
2
Model
GTS
3
Year
2019
4
Trim
GTS 125 4T Euro 4 ABS
5
Parts Catalog

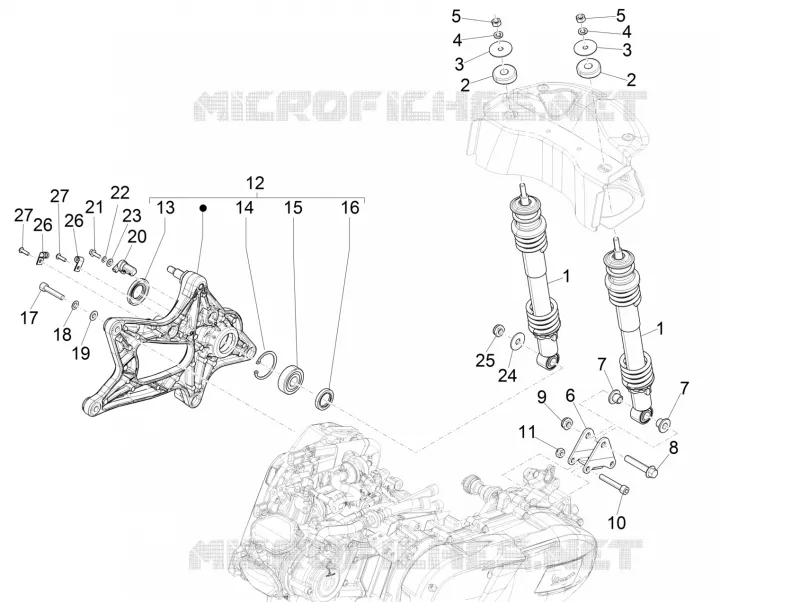

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Stand/s
by
Crankcase cover - Crankcase cooling
Rear suspension - Shock absorber/s
1
1
2
2
3
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
1
Complete rear shock absorber
58503R5
Not Available
2
Upper buffer
178150
£2,69 Unit Price incl. VAT
3
Flat washer
267038
£1,02 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
Not Available
5
Nut M8
021108
Not Available
6
Rear shock absorber fixing bracket
1C000317
£7,51 Unit Price incl. VAT
7
Bush
597149
£4,04 Unit Price incl. VAT
8
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
9
Self locking nut M10
002440
Not Available
10
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
11
Nut M8
020008
Not Available
12
Suspension arm with I.P.
1A006796
Not Available
13
Gasket ring 25-47-5
1A005943
£4,06 Unit Price incl. VAT
14
Circlip
006647
Not Available
15
Ball bearing
82545R
£22,90 Unit Price incl. VAT
16
Gasket ring 25-37-6
1A005942
£3,77 Unit Price incl. VAT
17
screw M8x30
015792
Not Available
18
Spring washer
709047
£0,70 Unit Price incl. VAT
19
Flat washer 15x8,4x1,5
003058
Not Available
20
ABS rear sensor
B000526
Not Available
21
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
22
Washer Ø5,3xØ10x0,5
006975
Not Available
23
Flat washer
669282
£2,36 Unit Price incl. VAT
24
Washer
013962
Not Available
25
Self locking nut M10
002440
Not Available
26
Strap
643451
£1,61 Unit Price incl. VAT
27
Torx convex big end screw M5x16
B0167965
£0,89 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
