Parts Catalog
MAIN WIRING HARNESS
6
Parts Diagram
Parts Catalog
Cdi magneto assy
by
Front glove-box - Knee-guard panel
MAIN WIRING HARNESS
1
1
1
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Chassis cables unit
1D002585
Not Available
1
Chassis cables unit
1D002587
Not Available
2
Reed fuse 5a
293256
£1,42 Unit Price incl. VAT
3
Fuse 7,5A
252945
£2,26 Unit Price incl. VAT
4
Fuse
291570
£1,70 Unit Price incl. VAT
5
Fuse 15A
290860
£2,26 Unit Price incl. VAT
6
Reed fuse 10A
292507
£2,26 Unit Price incl. VAT
7
Fuse 30A
CM225730
£4,74 Unit Price incl. VAT
8
Hose clamp 2,7x132
640879
£5,14 Unit Price incl. VAT
9
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
10
Wiring clip
1D001143
£1,24 Unit Price incl. VAT
11
Fusebox bracket
641532
£9,58 Unit Price incl. VAT
12
Connectors support bracket
1B003953
£3,78 Unit Price incl. VAT
13
Ground cable
584843
£13,84 Unit Price incl. VAT
14
Tri/lobed hexagonal self-tapping screw
641204
£1,24 Unit Price incl. VAT
15
Spring washer 6,4x11,8x1
016406
Not Available
16
Flat washer 6,4x12x1
003056
Not Available
17
Guard
CM077703
£4,34 Unit Price incl. VAT
18
Pipes/cables retainer spring
CM013202
£2,60 Unit Price incl. VAT
18
Spring
CM013201
£0,76 Unit Price incl. VAT
19
Pipes/cables retainer spring L=16
CM006907
£4,32 Unit Price incl. VAT
19
Non return spring L=33
CM006906
£4,32 Unit Price incl. VAT
20
Non return spring l=27
CM006904
£2,32 Unit Price incl. VAT
20
Non return spring
CM006912
£8,21 Unit Price incl. VAT
21
Hose clamp
668762
£2,36 Unit Price incl. VAT
22
Molletta
CM006910
£4,28 Unit Price incl. VAT
23
Non return spring L=23
CM006908
£4,60 Unit Price incl. VAT
24
Non return spring
CM017811
£2,22 Unit Price incl. VAT
25
Plugs spring
641599
£3,08 Unit Price incl. VAT
26
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
27
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
28
Molletta
B005629
£1,99 Unit Price incl. VAT
29
Spring clamp
577594
£4,72 Unit Price incl. VAT
30
Ambient temperature sensor
581142
Not Available
31
Passe-câble
1B005386
£0,89 Unit Price incl. VAT
32
Cable harness (FRAME-TEMP. SENSOR)
1D002993
£28,52 Unit Price incl. VAT

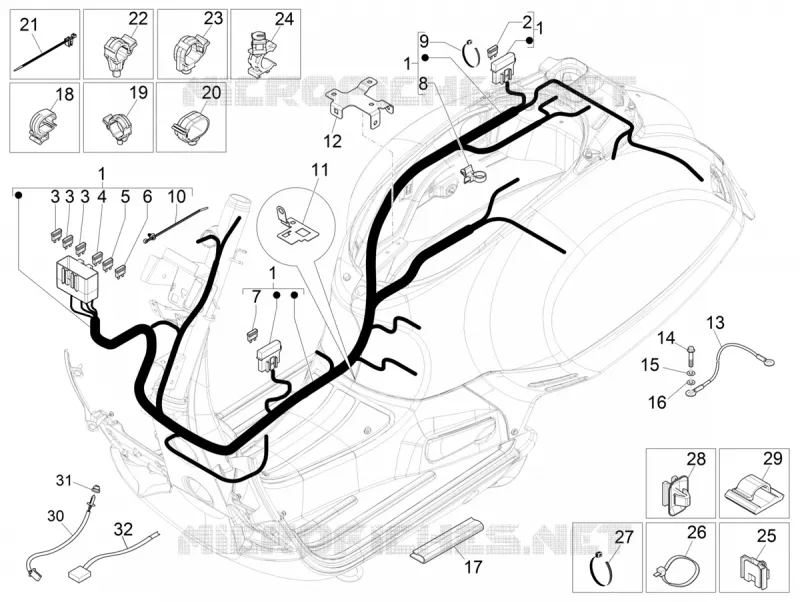

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
