Parts Catalog

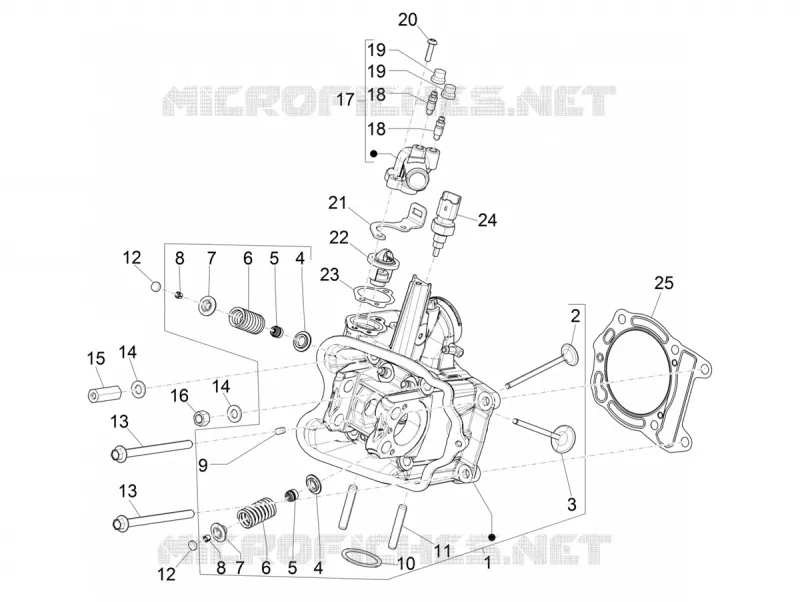

CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Anti-percolation system
by
Brakes pipes - Calipers (ABS)
CYLINDER HEAD - VALVES
1
2
3
4
4
5
6
6
7
7
8
8
9
10
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
14
14
15
16
17
18
18
19
19
20
21
22
23
24
25
1
Culasse cylindre complète
1A014953
£604,00 Unit Price incl. VAT
2
Exaust valve
880602
£51,20 Unit Price incl. VAT
3
Valve, in
880601
£20,71 Unit Price incl. VAT
4
Lower cap
878859
£3,78 Unit Price incl. VAT
5
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
6
Valve spring
878860
£6,26 Unit Price incl. VAT
7
Upper cap
879813
£4,55 Unit Price incl. VAT
8
Valve half-cone
285846
£1,98 Unit Price incl. VAT
9
Plug M6x10
842360
£2,20 Unit Price incl. VAT
10
Exhaust pipe gasket
879662
£2,90 Unit Price incl. VAT
11
Stud bolt
1A003632R
£2,35 Unit Price incl. VAT
12
Calibrated pad 3,40 mm
CM163221
£8,33 Unit Price incl. VAT
12
Calibrated pad 3,00 mm
CM163213
£7,40 Unit Price incl. VAT
12
Calibrated pad 2,75 mm
CM163208
£7,22 Unit Price incl. VAT
12
Calibrated pad 2,85 mm
CM163210
£7,38 Unit Price incl. VAT
12
Calibrated pad 2,90 mm
CM163211
£7,39 Unit Price incl. VAT
12
Calibrated pad 2,65 mm
CM163206
£7,32 Unit Price incl. VAT
12
Calibrated pad 3,05 mm
CM163214
£7,39 Unit Price incl. VAT
12
Calibrated pad 2,45 mm
CM163202
£8,51 Unit Price incl. VAT
12
Calibrated pad 3,30 mm
CM163219
£8,33 Unit Price incl. VAT
12
Calibrated pad 3,25 mm
CM163218
£8,39 Unit Price incl. VAT
12
Calibrated pad 2,55 mm
CM163204
£8,33 Unit Price incl. VAT
12
Calibrated pad 3,35 mm
CM163220
£8,39 Unit Price incl. VAT
12
Calibrated pad 2,70 mm
CM163207
£7,34 Unit Price incl. VAT
12
Calibrated pad 2,95 mm
CM163212
£7,39 Unit Price incl. VAT
12
Calibrated pad 2,50 mm
CM163203
£8,51 Unit Price incl. VAT
12
Calibrated pad 2,60 mm
CM163205
£8,23 Unit Price incl. VAT
12
Calibrated pad 2,80 mm
CM163209
£7,30 Unit Price incl. VAT
12
Calibrated pad 3,20 mm
CM163217
£8,41 Unit Price incl. VAT
12
Calibrated pad 3,10 mm
CM163215
£7,39 Unit Price incl. VAT
12
Calibrated pad 2,40 mm
CM163201
£8,46 Unit Price incl. VAT
12
Calibrated pad 3,15 mm
CM163216
£8,51 Unit Price incl. VAT
13
Vis bride
1A015189
£2,38 Unit Price incl. VAT
14
Rondelle plate
1A015267
£1,69 Unit Price incl. VAT
15
Écrou hexagonal haut
1A015269
£5,09 Unit Price incl. VAT
16
Écrou
1A015268
£3,38 Unit Price incl. VAT
17
Couvercle thermostat
1A018123
£22,46 Unit Price incl. VAT
18
Bleed screw
430045
£1,60 Unit Price incl. VAT
19
Bleed valve cap
063435
Not Available
20
Torx Screw M5x20
B016808
£1,27 Unit Price incl. VAT
21
Plaque de sonde lambda
1A018542
£4,40 Unit Price incl. VAT
22
Thermostat
82831R5
£69,52 Unit Price incl. VAT
23
Thermostat cover gasket
1A018154
£2,95 Unit Price incl. VAT
24
Temperature gauge
640485
Not Available
25
Joint cylindre/culasse
1A013230
£13,97 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
