Parts Catalog
Cdi magneto assy
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
REAR WHEEL
Cdi magneto assy
1
2
3
4
5
6
7
8
9
10
11
1
Stator
1A002542
Not Available
2
Hex socket screw
1A005637
£2,30 Unit Price incl. VAT
3
Torx Screw
1A003477
£0,52 Unit Price incl. VAT
4
Torx Screw
1A003477
£0,52 Unit Price incl. VAT
5
Rotor, assy.
1A006220
£128,81 Unit Price incl. VAT
6
Flat washer 32x16,1x2.5
1A003712
£2,42 Unit Price incl. VAT
7
Belleville spring
B018464
£7,07 Unit Price incl. VAT
8
Nut M16x1,25
B015996
£4,99 Unit Price incl. VAT
9
Fan
1A006071
£40,80 Unit Price incl. VAT
10
Torx Screw
1A004975
£2,14 Unit Price incl. VAT
11
Transmission key
B015997
Not Available

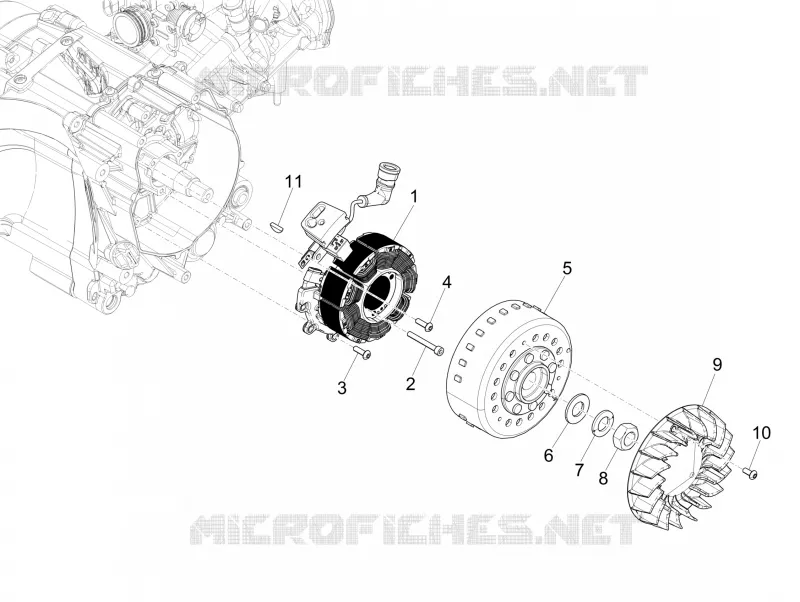

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Medley 4T ie ABS
