1
Engine displacement
125
2
Model
MEDLEY
3
Year
2022
4
Trim
Medley 125 Euro 5 ABS
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
EXHAUST

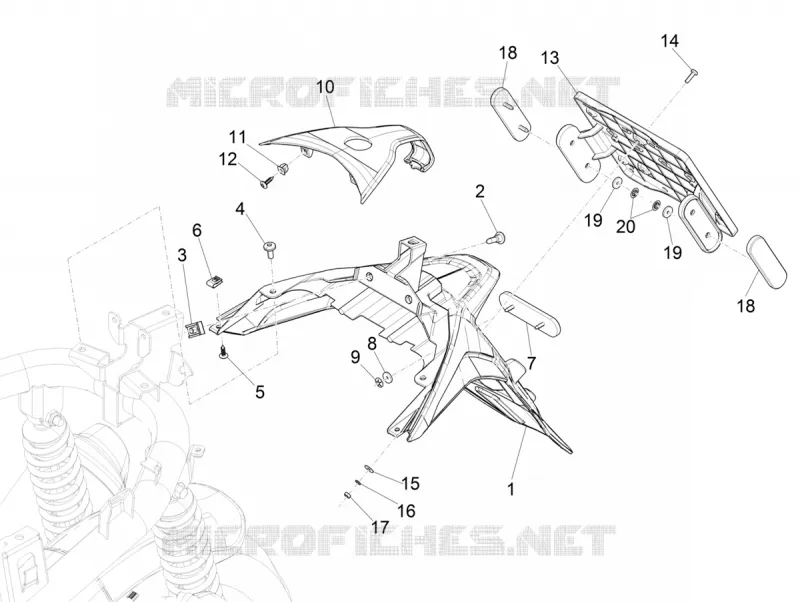

Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
18
19
19
20
1
Bavette arrière
1B0063670000C
£45,73 Unit Price incl. VAT
2
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
3
Spring plate M6
254485
£1,64 Unit Price incl. VAT
4
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
5
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
6
Spring plate
CM017410
£0,71 Unit Price incl. VAT
7
Reflector
5A000498
£11,87 Unit Price incl. VAT
8
Spacer
5A000387
£0,50 Unit Price incl. VAT
9
Plate
5A000388
£1,13 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704000HY
£52,42 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704
£50,41 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704400BR
£40,32 Unit Price incl. VAT
10
Fermeture arrière des carénages
1B001704400NS
£40,32 Unit Price incl. VAT
11
Expansion plug
157716
£0,16 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
£1,24 Unit Price incl. VAT
13
Porte-plaque
1B006497
£15,74 Unit Price incl. VAT
14
Screw M4x12
015996
Not Available
15
Flat washer 4,2x12x1
013763
Not Available
16
Flat washer 4,2x7,6x0,9
016404
Not Available
17
Nut M4
020104
Not Available
18
Reflector
5A000498
£11,87 Unit Price incl. VAT
19
Spacer
5A000387
£0,50 Unit Price incl. VAT
20
Plate
5A000388
£1,13 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
