Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
Not Available
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Snap ring
963486
£0,58 Unit Price incl. VAT
3
Cylinder assembly-piston-pin (Cast-iron)
831975
£337,87 Unit Price incl. VAT
4
Piston pin
482335
£13,97 Unit Price incl. VAT
5
Complete piston (Cast-iron) Cat.D
8319740004
£124,04 Unit Price incl. VAT
5
Complete piston (Cast-iron) Cat.A
8319740001
£124,04 Unit Price incl. VAT
5
Complete piston (Cast-iron) Cat.C
8319740003
£124,04 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.D
8271120004
£95,23 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.B
8271120002
£95,23 Unit Price incl. VAT
5
Complete piston (Cast-iron) Cat.B
8319740002
£124,04 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.C
8271120003
£95,23 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.A
8271120001
£95,23 Unit Price incl. VAT
6
Compression ring d.57x1
485619
Not Available
7
Oil scraper ring d.57x1
434415
Not Available
8
Oil scraper ring d.57x2,5
485934
Not Available

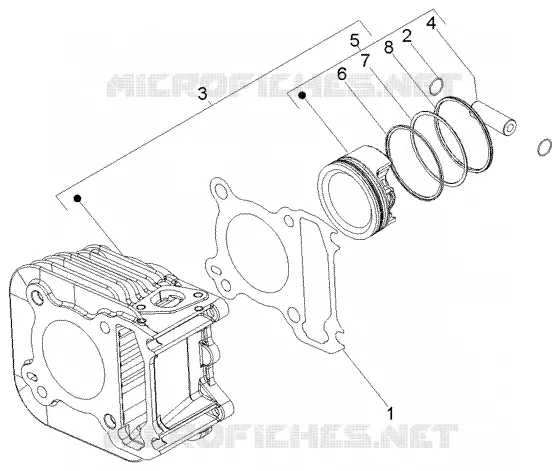

Find the detailed Cylinder-piston-wrist pin, assy GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
