Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog

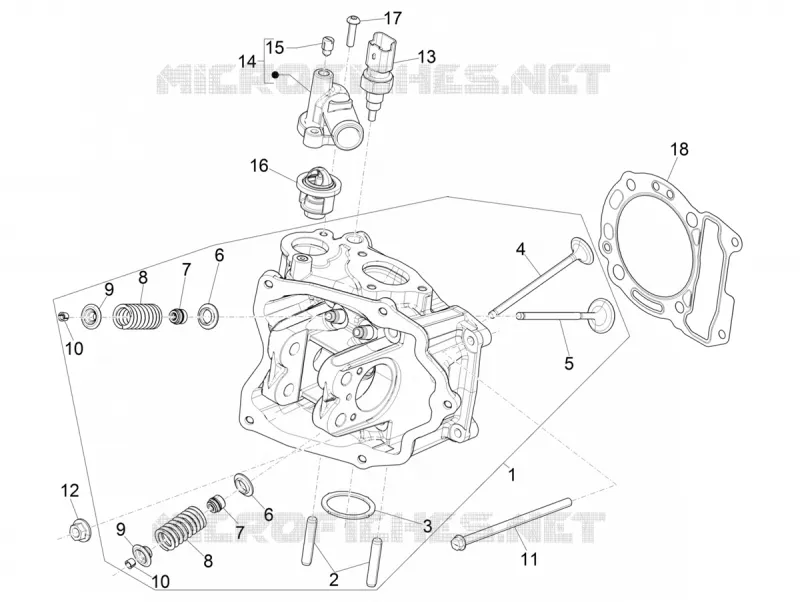

CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Rocking levers support unit
CYLINDER HEAD - VALVES
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
1
Culasse cylindre complète
1A0134325
£581,75 Unit Price incl. VAT
2
Stud bolt M7
435629
£1,87 Unit Price incl. VAT
3
Exhaust pipe gasket
480853
£5,16 Unit Price incl. VAT
4
Soupape d'échappement ø 22.2 mm
1A014447
£76,12 Unit Price incl. VAT
5
Soupape d'admission ø 25 mm
1A009730
£51,94 Unit Price incl. VAT
6
Lower cap
483711
£2,12 Unit Price incl. VAT
7
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
8
Ressort
1A009718
£6,40 Unit Price incl. VAT
9
Upper cap
483914
£5,71 Unit Price incl. VAT
10
Valve half-cone
285846
£1,98 Unit Price incl. VAT
11
screw M6x112,5
B016807
£1,90 Unit Price incl. VAT
12
Ecrou M8 x 1.25
1A010537
£0,95 Unit Price incl. VAT
13
Bulbe de température d’eau
1A023021R
£39,46 Unit Price incl. VAT
14
Raccord sortie eau
1A011220
£66,58 Unit Price incl. VAT
15
Vis de purge
1A011176
Not Available
16
Thermostat
82831R5
£69,52 Unit Price incl. VAT
17
Torx Screw M5x20
B016808
£1,27 Unit Price incl. VAT
18
Joint tête 0,3 mm
1A014002
£15,54 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
