Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
CRANKSHAFT
by
CYLINDER HEAD - VALVES
Cylinder-piston-wrist pin unit
1
2
2
2
2
3
4
5
6
7
8
9
10
11
11
1
Groupe cylindre - piston - axe du piston - segments - bagues
1A0214314
£359,05 Unit Price incl. VAT
2
Groupe piston axe Cat. 2 "N"
1A0133640N
£243,96 Unit Price incl. VAT
2
Groupe piston axe Cat. 3 "O"
1A0133640O
£262,09 Unit Price incl. VAT
2
Groupe piston axe Cat 1 "M"
1A0133640M
£262,09 Unit Price incl. VAT
2
Groupe piston axe Cat. 4 "P"
1A0133640P
£262,09 Unit Price incl. VAT
3
Segment de compression
1A011379
£24,00 Unit Price incl. VAT
4
Segment racleur d'huile
1A013666
£34,02 Unit Price incl. VAT
5
Segment racleur d'huile
1A013667
£40,30 Unit Price incl. VAT
6
Snap ring
875096
£1,24 Unit Price incl. VAT
7
Piston pin
875005
£11,50 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
£14,40 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT
10
Locating dowel
B015957
£1,00 Unit Price incl. VAT
11
O-ring
B017342
£1,13 Unit Price incl. VAT

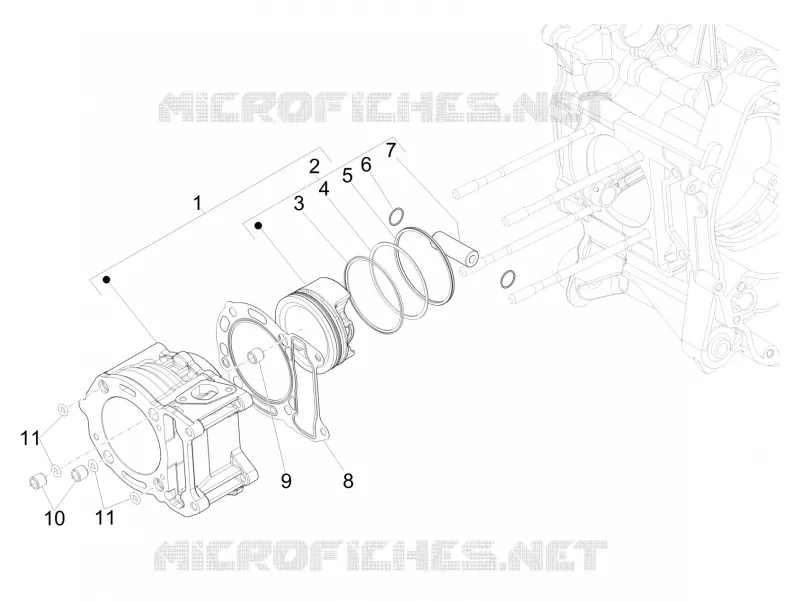

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
