1
Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Rear cover - Splash guard
Wheel huosing - Mudguard
1
1
2
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
Front mudguard
1B011190400Q03
£195,70 Unit Price incl. VAT
1
Front mudguard
1B011190400XN2
£195,70 Unit Price incl. VAT
2
Metric screw
CM179307
£1,27 Unit Price incl. VAT
3
Bush
1C001238
£2,53 Unit Price incl. VAT
4
Plain washer
006175
Not Available
5
Self locking nut
012138
Not Available
6
coperchio proiettore grezzo
1B010801
£87,49 Unit Price incl. VAT
6
Cache de projecteur
1B010801400Q03
£102,77 Unit Price incl. VAT
6
Cache de projecteur
1B010801400XN2
£103,45 Unit Price incl. VAT
7
screw
CM179202
£1,27 Unit Price incl. VAT
8
Self locking nut M6
195482
£1,27 Unit Price incl. VAT
9
Hex socket screw
581957
£0,30 Unit Price incl. VAT
10
Washer
013963
Not Available
11
Spacer
648059
£3,23 Unit Price incl. VAT
12
Self locking nut
577620
£0,97 Unit Price incl. VAT
13
Headlight anchoring bracket
647887
£15,80 Unit Price incl. VAT
14
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
15
Spring washer 12x6,4x0,5
006976
Not Available
16
Nut
012112
Not Available
17
Washer
004021
Not Available
18
Bride avec pièces internes
1B010969
£15,41 Unit Price incl. VAT
19
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
20
Spring washer 12x6,4x0,5
006976
Not Available
21
Joint
1B011199
£5,47 Unit Price incl. VAT
22
Bride de suspension
1B011198
£23,12 Unit Price incl. VAT
23
Bride de supp. de projecteur
1B010866
£74,50 Unit Price incl. VAT
24
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
25
Spring washer 12x6,4x0,5
006976
Not Available
26
Spring plate M6
254485
£1,64 Unit Price incl. VAT
27
Anchoring bracket
648060
£16,92 Unit Price incl. VAT
28
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
29
Spring washer 12x6,4x0,5
006976
Not Available
30
Washer
097734
Not Available
31
Spring plate M6
254485
£1,64 Unit Price incl. VAT
32
Bavette avant
1B011161
£12,84 Unit Price incl. VAT
33
screw
268418
£1,02 Unit Price incl. VAT
34
Washer
004021
Not Available
35
Flanged plate
CM017413
£1,13 Unit Price incl. VAT
36
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
37
Bracket
1C001828
£60,55 Unit Price incl. VAT
38
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
39
Spring washer 12x6,4x0,5
006976
Not Available
40
Bride avec pièces internes
1C007436
£19,28 Unit Price incl. VAT
41
Hex socket screw M6x16
709099
£0,14 Unit Price incl. VAT
42
Spring washer 12x6,4x0,5
006976
Not Available
43
Spring plate M6
254485
£1,64 Unit Price incl. VAT
44
Elastic spring
231590
£0,60 Unit Price incl. VAT
45
Garde-boue Ar.
1B005489
£20,33 Unit Price incl. VAT
46
screw M6x35
414838
£1,27 Unit Price incl. VAT
47
Notched washer 6,6x11x0
012533
Not Available
48
Flat washer 6,4x12x1
003056
Not Available
49
Spring plate M6
254485
£1,64 Unit Price incl. VAT
50
Encadrement de projecteur
1B010802000NU
£25,70 Unit Price incl. VAT
51
Self-tap screw 3,5x13
018536
Not Available
52
Spring plate
CM017403
£0,90 Unit Price incl. VAT

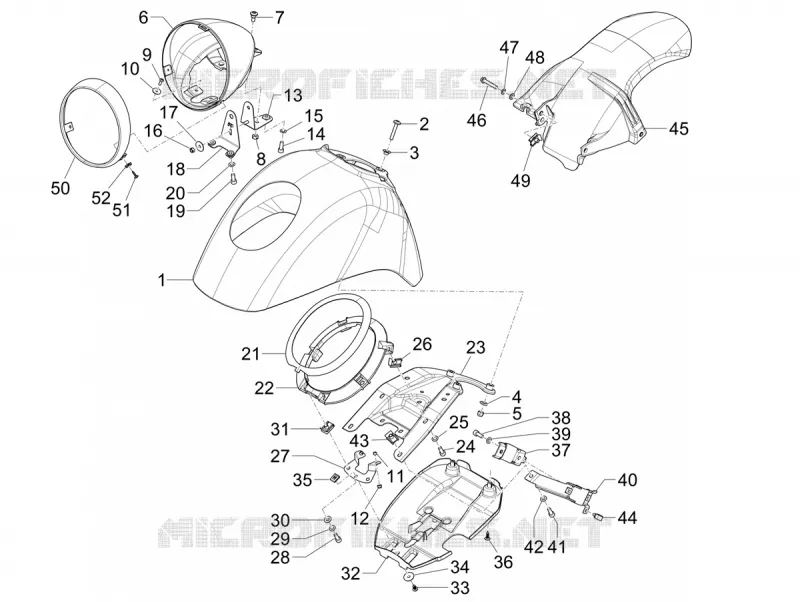

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
