Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
WATERPUMP
Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
25
1
Oil pump assembly
82948R
£130,91 Unit Price incl. VAT
2
Carter-oil pump gasket
847929
£1,19 Unit Price incl. VAT
3
Screw w/ flange M5x35
829593
£1,27 Unit Price incl. VAT
4
Oil pump gear
287913
£8,52 Unit Price incl. VAT
5
Screw w/ flange M6x14
B016426
£1,27 Unit Price incl. VAT
6
Belleville spring Ø6,4xØ20x2
436695
£2,09 Unit Price incl. VAT
7
Oil pump chain
82649R
£15,60 Unit Price incl. VAT
8
Oil pump control pinion
82783R
£22,50 Unit Price incl. VAT
9
O-Ring seal ring
825952
£0,79 Unit Price incl. VAT
10
Oil seal washer
483918
£1,27 Unit Price incl. VAT
11
Timing chain pinion
82782R
£22,31 Unit Price incl. VAT
12
Tge tendeur de chaîne
1A011207
£12,76 Unit Price incl. VAT
13
Screw w/ flange M6x25
B016774
£1,27 Unit Price incl. VAT
14
Chain tensioner rod spacer
485868
Not Available
15
Camshaft chain
82723R
£59,88 Unit Price incl. VAT
16
Chain tensioner sliding block
847516
£14,69 Unit Price incl. VAT
17
Timing system cover
1A0033175
£84,22 Unit Price incl. VAT
17
Timing system cover
847116
£59,46 Unit Price incl. VAT
18
Support tendeur de chaîne
1A019253
£35,66 Unit Price incl. VAT
19
Guarnizione cilindro/tendicatena
847928
£3,24 Unit Price incl. VAT
20
Screw w/ flange M6x16
B016777
£1,27 Unit Price incl. VAT
21
Tampon
1A014842
£4,06 Unit Price incl. VAT
22
Carter à huile
1A012834
£58,28 Unit Price incl. VAT
23
Screw w/ flange M6x30
B016792
£1,27 Unit Price incl. VAT
24
Gasket
846098
£6,12 Unit Price incl. VAT
25
Locating dowel Ø7,5x12
277916
£6,38 Unit Price incl. VAT

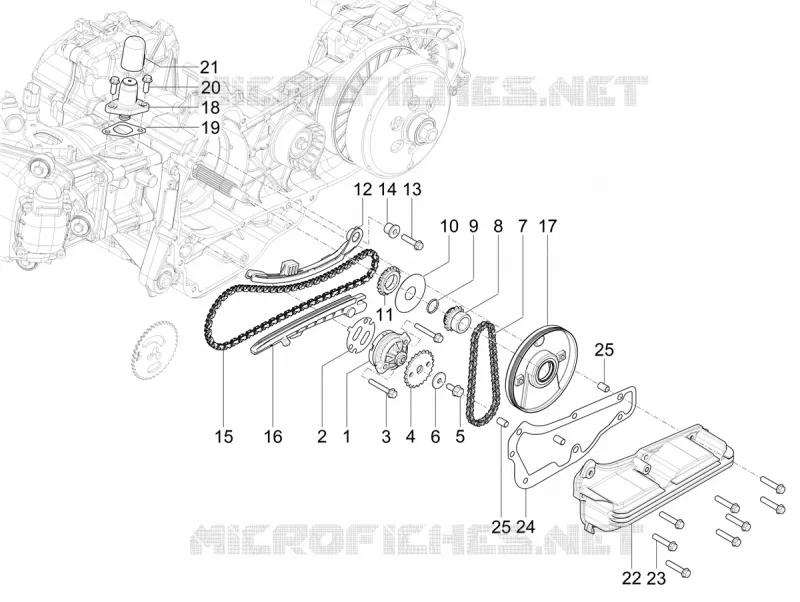

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
