1
Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog
LOCKS
6
Parts Diagram
Parts Catalog
MIRRORS
by
Tank

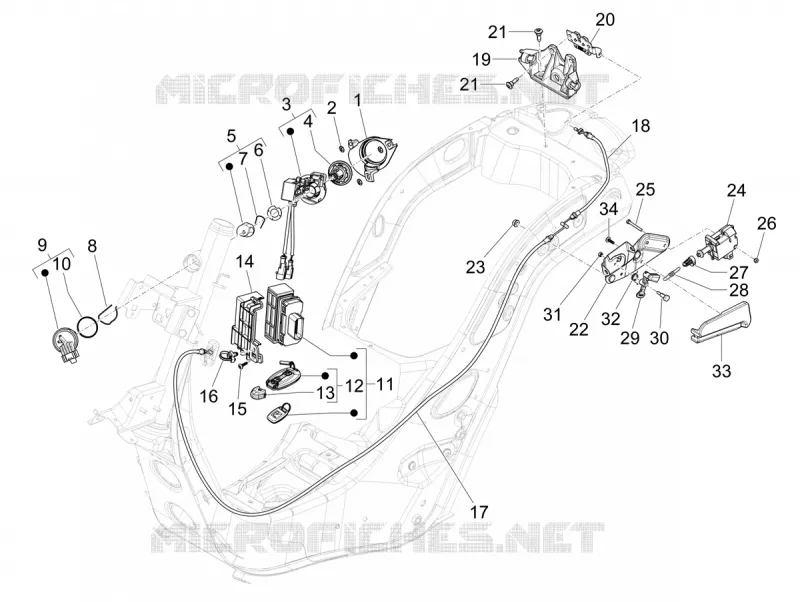

LOCKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
Keyless plate
1B009616
£14,78 Unit Price incl. VAT
2
Spring plate
181351
£0,98 Unit Price incl. VAT
3
Keyless lock components
1D003123
£51,95 Unit Price incl. VAT
4
Lock cylinder
1B007097
£31,09 Unit Price incl. VAT
5
Complete lock block
1B006291
£32,41 Unit Price incl. VAT
6
Flat washer
298594
£1,24 Unit Price incl. VAT
7
Cylinder retainer spring
298838
£1,69 Unit Price incl. VAT
8
Spring
253937
£2,00 Unit Price incl. VAT
9
Commutateur
1D004025
£18,83 Unit Price incl. VAT
10
O-ring
177408
£1,33 Unit Price incl. VAT
11
Kit of complete keyless
1D004576
Not Available
12
Keyless radiotransmitter
1D004008
£115,16 Unit Price incl. VAT
13
Cover for remote control
1D004390
£5,93 Unit Price incl. VAT
14
Control unit fixing plate
1B009808
£5,93 Unit Price incl. VAT
15
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT
16
Wiring clip
1D001143
£1,24 Unit Price incl. VAT
17
Seat emergency opening transmission
CM012813
£16,58 Unit Price incl. VAT
18
Saddle cable
CM012811
£13,22 Unit Price incl. VAT
19
Bracket
577456
£14,81 Unit Price incl. VAT
20
Saddle lock
CM023703
£33,19 Unit Price incl. VAT
21
Metric screw M6x22
CM179201
£0,62 Unit Price incl. VAT
22
plate
577471
£16,09 Unit Price incl. VAT
23
Self locking nut M6
241936
£0,74 Unit Price incl. VAT
24
Valve solénoïde
1D002276R
£69,92 Unit Price incl. VAT
25
Hexagonal-head screw
584121
£10,69 Unit Price incl. VAT
26
Self locking nut
577620
£0,97 Unit Price incl. VAT
27
Joint
577128
£3,71 Unit Price incl. VAT
28
Spring
620415
£4,94 Unit Price incl. VAT
29
Lever
577129
£6,18 Unit Price incl. VAT
30
Special screw
299972
£1,14 Unit Price incl. VAT
31
Self locking nut
577620
£0,97 Unit Price incl. VAT
32
Spring
577131
£3,31 Unit Price incl. VAT
33
Cover
1B004649
£4,97 Unit Price incl. VAT
34
Self tapping screw D4x16
CM180701
£0,52 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
