1
Engine displacement
300
2
Model
GTV
3
Year
2023
4
Trim
Vespa GTV 300 HPE E5 ABS RST
5
Parts Catalog

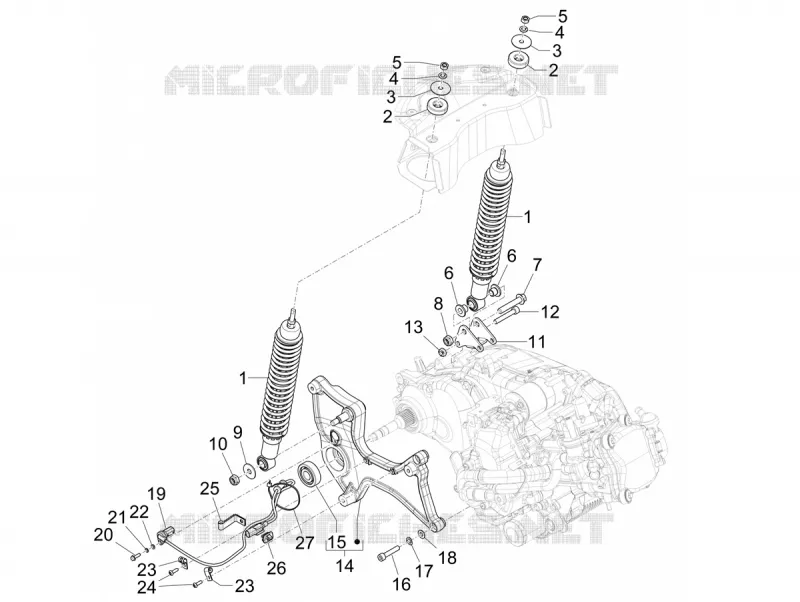

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Front wheel
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
1
Amortisseur arrière complet
1C006341
£160,79 Unit Price incl. VAT
2
Upper buffer
178150
£2,69 Unit Price incl. VAT
3
Flat washer
267038
£1,02 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
Not Available
5
Nut M8
021108
Not Available
6
Bush
597149
£4,04 Unit Price incl. VAT
7
Screw w/ flange M10
268158
£1,87 Unit Price incl. VAT
8
Self locking nut M10
002440
Not Available
9
Flat washer
1C001145
£2,36 Unit Price incl. VAT
10
Self locking nut M10
002440
Not Available
11
plate
598143
£12,76 Unit Price incl. VAT
12
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
13
Nut M8
020008
Not Available
14
Bras de suspension droit complet
1A019545
£149,54 Unit Price incl. VAT
15
Ball bearing
82545R
£22,90 Unit Price incl. VAT
16
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
17
Spring washer
709047
£0,70 Unit Price incl. VAT
18
Flat washer 15x8,4x1,5
003058
Not Available
19
Capteur arrière ABS
1D003828
£103,36 Unit Price incl. VAT
20
Screw w/ flange M5x16
830061
£2,48 Unit Price incl. VAT
21
Washer Ø5,3xØ10x0,5
006975
Not Available
22
Flat washer
669282
£2,36 Unit Price incl. VAT
23
Strap
643451
£1,61 Unit Price incl. VAT
24
Torx convex big end screw M5x16
B0167965
£0,89 Unit Price incl. VAT
25
Hose clamp
9004461229000
£0,90 Unit Price incl. VAT
26
Molletta
B005629
£1,99 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
