1
Engine displacement
150
2
Model
946
3
Year
2023
4
Trim
Vespa 946 150 E5 10° Anniversario
5
Parts Catalog
Saddle/seats
6

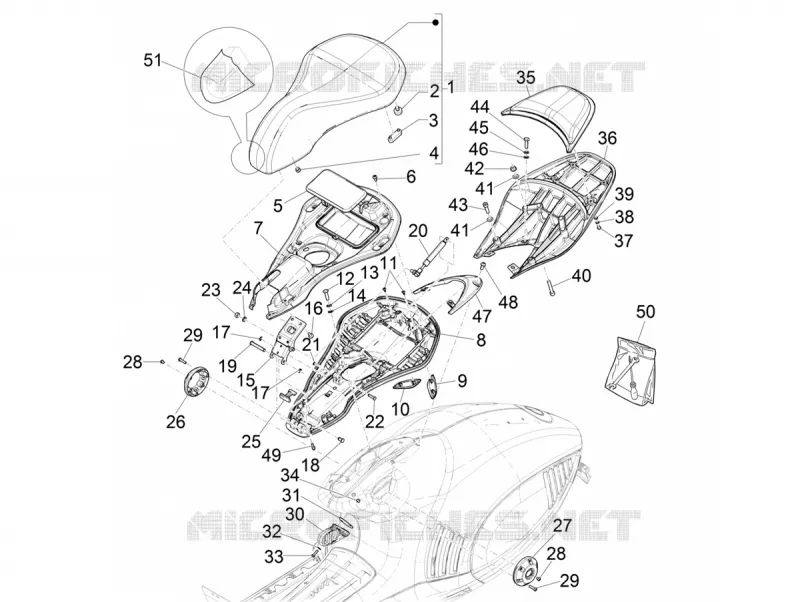

Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Front shield
Saddle/seats
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
1
Saddle assembly
1B011348
£583,03 Unit Price incl. VAT
2
Stop buffer
296456
£2,54 Unit Price incl. VAT
3
Pad
577492
£4,28 Unit Price incl. VAT
4
Pad
623504
£2,18 Unit Price incl. VAT
5
Cover
1B001102
£20,05 Unit Price incl. VAT
6
Self-tapping screw M6x14
1B000068
£1,52 Unit Price incl. VAT
7
Saddle cover
1B001062
£76,18 Unit Price incl. VAT
8
Support selle
1B011355
£426,61 Unit Price incl. VAT
9
Tappo estetico SX
1B011353
£48,34 Unit Price incl. VAT
10
Tappo estetico DX
1B011354
£48,34 Unit Price incl. VAT
11
Self tapping screw
297498
£0,60 Unit Price incl. VAT
12
screw
031120
Not Available
13
Spring washer 13,75x8,15x4,5
016408
Not Available
14
Flat washer 15x8,4x1,5
003058
Not Available
15
Saddle hinge
675930
£102,58 Unit Price incl. VAT
16
Screw M6x16
CM179301
£1,27 Unit Price incl. VAT
17
Snap ring
620970
£0,05 Unit Price incl. VAT
18
Pin
675929
£5,32 Unit Price incl. VAT
19
Pin
675932
£6,42 Unit Price incl. VAT
20
Spring
675604
£32,09 Unit Price incl. VAT
21
Ring
005964
Not Available
22
Pin
675935
£6,17 Unit Price incl. VAT
23
Nut M8x6,5
020108
Not Available
24
Spring washer 13,75x8,15x4,5
016408
Not Available
25
Stop buffer
1B000980
£12,78 Unit Price incl. VAT
26
Right side aesthetic cap
1B011378
£116,60 Unit Price incl. VAT
27
Left side aesthetic cap
1B011362
£116,60 Unit Price incl. VAT
28
TBIC screw
1B000260
£1,24 Unit Price incl. VAT
29
Hex socket screw
654507
£2,39 Unit Price incl. VAT
30
Crochet porte-sacs
1B011346000G39
£213,30 Unit Price incl. VAT
31
Gasket
1B000167
£1,93 Unit Price incl. VAT
32
Flat washer 6,4x12x1
003056
Not Available
33
Hex socket screw
834038
£0,89 Unit Price incl. VAT
34
Self locking nut
012138
Not Available
35
Selle passager
1B011349
£142,21 Unit Price incl. VAT
36
Support de selle passager
1B011352
£888,78 Unit Price incl. VAT
37
Hex socket screw
654507
£2,39 Unit Price incl. VAT
38
Break washer
479515
£0,47 Unit Price incl. VAT
39
Washer
013955
Not Available
40
Hex socket screw
1B001477
£2,75 Unit Price incl. VAT
41
Washer
006978
Not Available
42
Flanged nut
015341
Not Available
43
screw M8x30
015792
Not Available
44
screw M8x20
031118
Not Available
45
Spring washer 13,75x8,15x4,5
016408
Not Available
46
Flat washer 6,4x12x1
003056
Not Available
47
Saddle support frame
1B011364000G39
£63,12 Unit Price incl. VAT
48
Hex socket screw
1B001190
£2,60 Unit Price incl. VAT
49
Threaded pin
1B000912
£10,39 Unit Price incl. VAT
50
Tool set, standard l/jack
1C000285
£23,29 Unit Price incl. VAT
51
Hous. de selle
1B009133
£341,76 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
