Engine displacement
350
2
Model
BEVERLY
3
Year
2013
4
Trim
Beverly 4T 4V ie E3 Sport Touring
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Saddle/seats
by
Plates - Emblems
Crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2nd cat. complete crankcase
B0194530B
Not Available
1
Complete crankcase 1st cat.
1A0005960A
Not Available
1
Complete crankcase 1st cat.
B0194530A
Not Available
1
2nd cat. complete crankcase
B0182050002
Not Available
1
Complete crankcase 1st cat.
B0182050001
Not Available
1
2nd cat. complete crankcase
1A0005960B
Not Available
2
Radial bearing 20x47x14
485913
Not Available
3
Radial bearing
B015269
£70,97 Unit Price incl. VAT
4
Radial ball bearing 15x42x13
83018R
£10,26 Unit Price incl. VAT
5
Screw
B013608
£1,98 Unit Price incl. VAT
6
Washer
873905
£10,52 Unit Price incl. VAT
7
screw
847174
Not Available
8
Washer
847238
£1,50 Unit Price incl. VAT
9
Silent-block
486081
£9,73 Unit Price incl. VAT
10
Calibrated nozzle
B015068
£5,98 Unit Price incl. VAT
11
Calibrated nozzle
B015069
£5,98 Unit Price incl. VAT
12
Stud bolt
877285
Not Available
13
Pin 6,5x9,5x15
239388
Not Available
14
Locating dowel Ø11x10
478115
Not Available
15
Half crankcase gasket
B015425
£11,95 Unit Price incl. VAT
16
screw M6x60
432142
Not Available
16
Screw w/ flange M6x60
B016425
£1,62 Unit Price incl. VAT
17
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
18
Spring
485655
£1,13 Unit Price incl. VAT
19
Oil filter
880887
£4,74 Unit Price incl. VAT
20
Spring
AP9150167
£12,95 Unit Price incl. VAT
21
O-Ring
B018141
£1,70 Unit Price incl. VAT
22
Oil filter cover
851295
£21,55 Unit Price incl. VAT
22
Oil filter cover
B018033
£22,43 Unit Price incl. VAT
23
screw
847174
Not Available
24
Washer
847238
£1,50 Unit Price incl. VAT
25
Reeds bracket
877704
£30,24 Unit Price incl. VAT
26
Intake oil filter
877822
£8,29 Unit Price incl. VAT
27
Oil intake plate
877823
£7,44 Unit Price incl. VAT
28
Chain tensioner sliding block
B015581
£19,73 Unit Price incl. VAT
29
screw
873102
£1,21 Unit Price incl. VAT
30
Hex screw M6x20
018639
Not Available

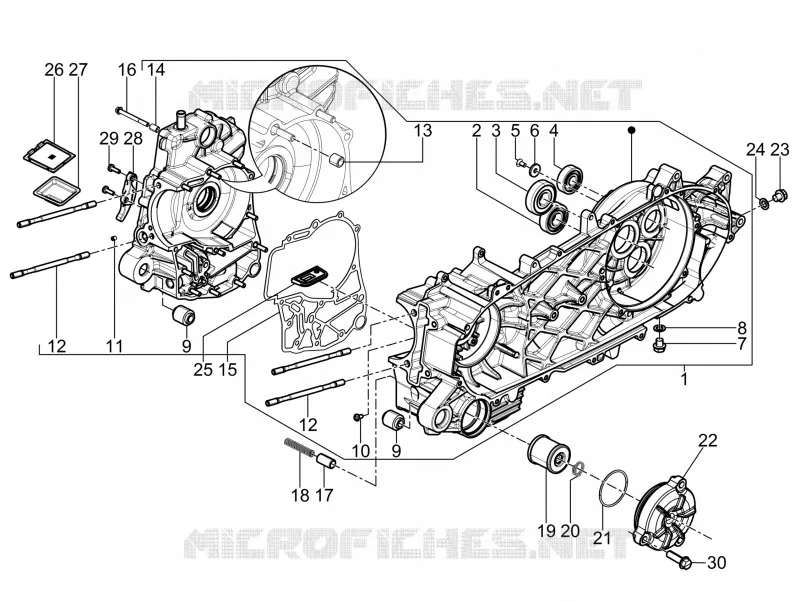

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
