1
Engine displacement
500
2
Model
BEVERLY
3
Year
2005
4
Trim
Beverly
5
Parts Catalog

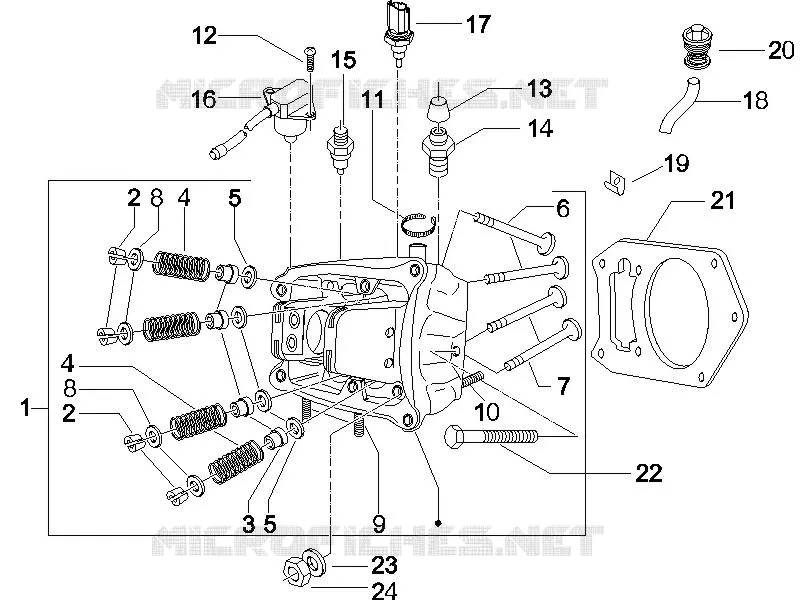

Head unit - Valve
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Rocking levers support unit
Head unit - Valve
1
2
2
3
3
4
4
5
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Cylinder head assy.
847793
Not Available
1
Cylinder head assembly
842648
Not Available
2
Valve half-cone
285846
£1,98 Unit Price incl. VAT
3
Valve gasket ring
436438
£11,03 Unit Price incl. VAT
4
Valve spring
826103
£30,80 Unit Price incl. VAT
5
Lower cup
826256
£4,93 Unit Price incl. VAT
6
Exhaust valve
828321
£146,32 Unit Price incl. VAT
7
Intake valve
828322
£87,73 Unit Price incl. VAT
8
Upper cup
828396
£53,17 Unit Price incl. VAT
9
Exhaust pipe stud bolt M8x3x46
827018
Not Available
10
Stud bolt M6
827953
Not Available
11
Hose clamp
CM001915
£1,99 Unit Price incl. VAT
12
Screw w/ flange M6x16
434541
Not Available
13
Bleed valve cap
063435
Not Available
14
Bleed screw
430045
£1,60 Unit Price incl. VAT
15
Engine speed sensor
638991
Not Available
16
Encoder sensor
832029
Not Available
17
Temp. Sensor
828646
£51,34 Unit Price incl. VAT
18
Thermostat-head pipe
840826
£11,29 Unit Price incl. VAT
19
Elastic spring
843603
£4,46 Unit Price incl. VAT
20
Water thermostat
844566
Not Available
20
Thermostat
848140
£68,92 Unit Price incl. VAT
21
Cylinder head gasket
830008
£34,21 Unit Price incl. VAT
22
screw M6x90
830278
Not Available
23
High hexagonal nut
832783
£4,81 Unit Price incl. VAT
24
Flat washer
178790
£1,64 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
