1
Engine displacement
500
2
Model
BEVERLY
3
Year
2011
4
Trim
Beverly Cruiser E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
by
Locks

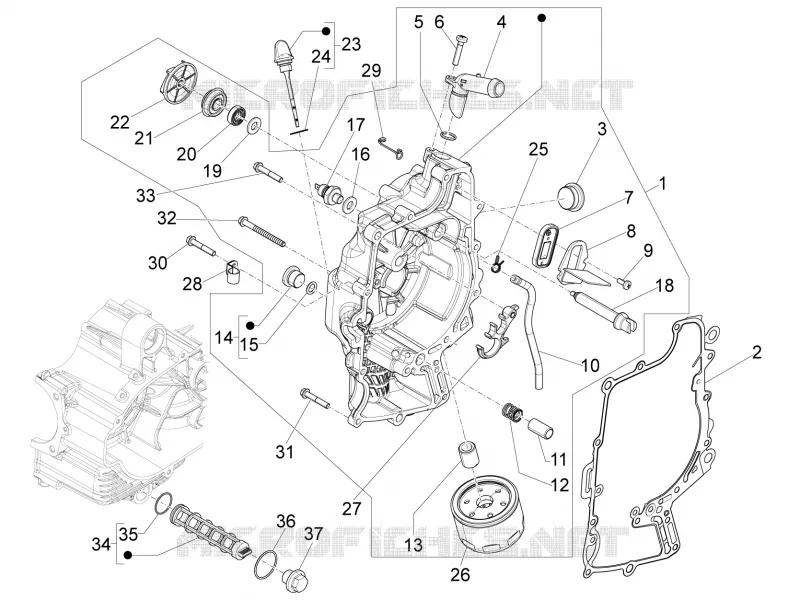

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Complete flywheel cover
8729175
Not Available
1
Flywheel cover cpl.
8720885
Not Available
2
Flywheel housing cover gasket
872914
£19,68 Unit Price incl. VAT
2
Flywheel housing cover gasket
847649
£21,47 Unit Price incl. VAT
3
Plug M12x1,5
411311
Not Available
4
Breather pipe
829047
£7,51 Unit Price incl. VAT
5
O-ring
237553
£1,87 Unit Price incl. VAT
6
TBCIC Screw M5x12
015935
Not Available
7
Reed valve support
82778R
£37,46 Unit Price incl. VAT
8
Valve tightening plate with U.P.
876060
£12,05 Unit Price incl. VAT
9
screw M5x10
433800
£0,86 Unit Price incl. VAT
10
Water outlet pipe
871795
£7,78 Unit Price incl. VAT
11
Oil pressure valve
829661
£11,54 Unit Price incl. VAT
12
Spring
829486
£1,72 Unit Price incl. VAT
13
Oil filter union
829122
£15,94 Unit Price incl. VAT
14
Timing plug assembly
829040
Not Available
15
O-ring
479986
Not Available
16
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
16
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
17
Oil pressure sensor
82580R
Not Available
17
Oil pressure sensor
641541
Not Available
18
Water pump shaft assy.
872536
£101,35 Unit Price incl. VAT
18
Water pump shaft assy.
844438
Not Available
19
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
20
Gasket ring
844439
Not Available
20
Gasket ring
873934
Not Available
21
Gasket ring
82991R
£27,28 Unit Price incl. VAT
22
Water pump impeller cpl.
827929
Not Available
23
Oil plug
825665
Not Available
24
O-ring
479986
Not Available
25
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
26
Oil filter
82883R
Not Available
26
Oil filter cpl.
82658R
Not Available
26
Oil filter
82960R
Not Available
27
Piping retainer clamp
849825
£7,81 Unit Price incl. VAT
28
Hose clamp
845978
£8,57 Unit Price incl. VAT
29
Spring
641201
£3,22 Unit Price incl. VAT
29
Spring
584464
Not Available
29
Spring
640925
Not Available
30
screw M6x35
414838
£1,27 Unit Price incl. VAT
31
Screw w/ flange M6x25
414837
Not Available
32
Screw m6x70
434429
£2,42 Unit Price incl. VAT
33
screw
414835
Not Available
33
screw M6x50
430207
Not Available
34
Oil filter
826033
£5,72 Unit Price incl. VAT
35
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
36
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
37
Oil filter plug
82823R
Not Available
37
Oil filter plug
826165
£22,13 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
