1
Engine displacement
125
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog

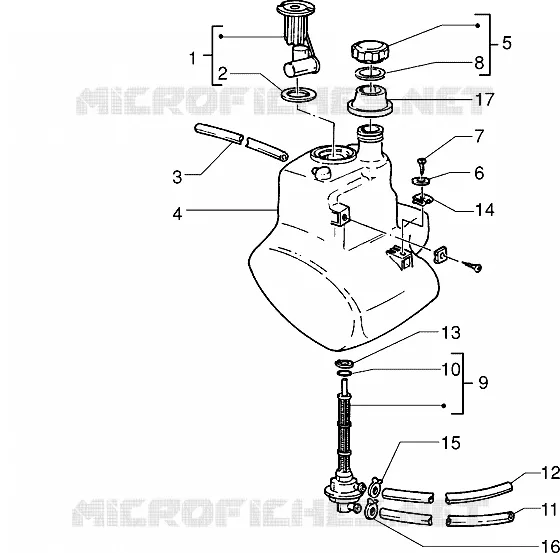

Fuel tank
6
Parts Diagram
Parts Catalog
Front glove compartment
by
Crankcase
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Indicator
297361
Not Available
2
Gasket
258161
Not Available
3
Breather pipe
299666
Not Available
4
Tank
298905
Not Available
5
Plug
259832
£8,71 Unit Price incl. VAT
6
Spring washer 6,4x11,8x1
016406
Not Available
7
Screw m16x16
015558
Not Available
8
Tank cover gasket
258160
£4,51 Unit Price incl. VAT
9
Faucet depression press fastener
57306R
£8,32 Unit Price incl. VAT
10
Gasket
196868
£3,14 Unit Price incl. VAT
11
pipe
298598
Not Available
12
Fuel pipe
CM004126
Not Available
13
Hose clamp
577557
Not Available
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT
15
Hose clamp
CM002904
£0,54 Unit Price incl. VAT
16
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
17
Guard
297368
Not Available
18
Valve
480509
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
