1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog

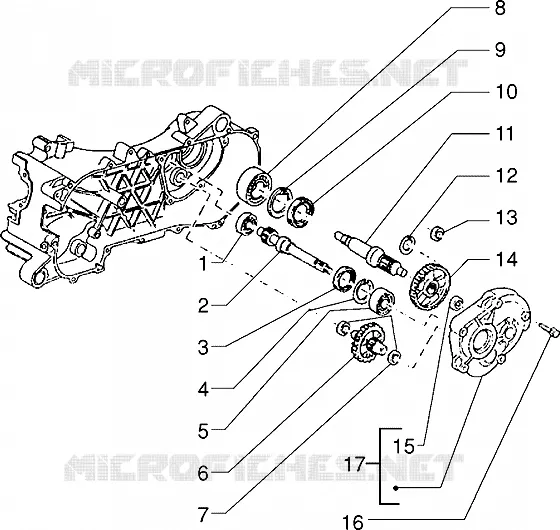

Rear wheel shaft
6
Parts Diagram
Parts Catalog
Driving pulley
by
Rear wheel shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Bearing
478261
£8,81 Unit Price incl. VAT
2
Pulley shaft
288602
Not Available
3
Ring
239848
Not Available
4
Ring
288812
Not Available
5
Bearing
430751
Not Available
6
Transmission shaft
4860055
Not Available
7
Shim washer
288639
£0,86 Unit Price incl. VAT
8
Bearing 20x47x14
434735
£17,32 Unit Price incl. VAT
9
Circlip
006647
Not Available
10
Gasket ring
478498
£6,29 Unit Price incl. VAT
11
Wheel axle
4781555
Not Available
12
Ring
006419
Not Available
13
Spacer
289133
Not Available
14
Gear
4300075
Not Available
15
Drawn cap
1304912
£8,64 Unit Price incl. VAT
16
Screw w/ flange M6x40
414834
Not Available
17
Cover
4354215
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
