1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Driven pulley
by
Rear wheel shaft
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
1
Spacer
287061
Not Available
2
Toothed pulley
286158
£10,48 Unit Price incl. VAT
3
screw
015947
Not Available
4
Spring washer
006964
Not Available
5
Cover
286271
Not Available
6
Gasket
285430
Not Available
7
Sliding block
285396
Not Available
8
Roller
285394
Not Available
9
Roller
289101
Not Available
10
Spacer
287062
£25,84 Unit Price incl. VAT
11
Pulley
2891006
Not Available
12
Pulley, half
286170
£120,76 Unit Price incl. VAT
13
Belt
430719
Not Available
14
Shell
285434
£1,12 Unit Price incl. VAT
15
Disc
480883
Not Available
16
Bush
288694
£10,94 Unit Price incl. VAT
17
Flanged nut M10x1,25
289519
£1,27 Unit Price incl. VAT
18
Pinion starter
483537
£28,58 Unit Price incl. VAT
19
Elastic spring
830212
Not Available
20
Pulley, half
287057
Not Available

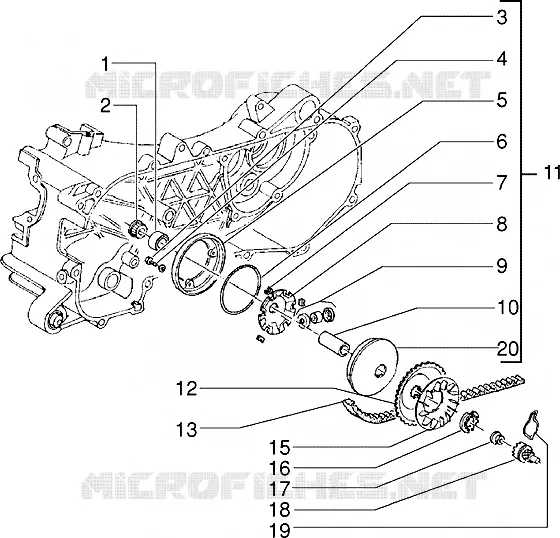

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
