1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog
Brake caliper - Brake disc
6
Parts Diagram
Parts Catalog
Crankcase
by
Front shock absorber
Brake caliper - Brake disc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Brake caliper
273713
Not Available
2
Brake pads kit
498846
Not Available
3
Brake disc
563246
Not Available
4
Ring
177494
£4,73 Unit Price incl. VAT
5
Drawn cap
177436
Not Available
6
Maintenance
2742055
Not Available
7
Ring gear counts Km socket
267818
£33,11 Unit Price incl. VAT
8
Washer
006968
Not Available
9
screw
031120
Not Available
10
Plate
269118
Not Available
11
Spring washer 8,5x5,1x1,5
016405
Not Available
12
screw M5x16
031058
Not Available
13
Pad
266841
£1,86 Unit Price incl. VAT
14
Maintenance
267518
Not Available
15
Pinion
267819
£3,60 Unit Price incl. VAT
16
Kit caliper overh.
498850
Not Available
17
Brake caliper rev. kit
498849
£39,92 Unit Price incl. VAT
18
O-ring
177408
£1,33 Unit Price incl. VAT
19
Circlip
006422
Not Available
20
Plate
269530
Not Available
21
screw
031120
Not Available
22
Spring washer
709047
£0,70 Unit Price incl. VAT

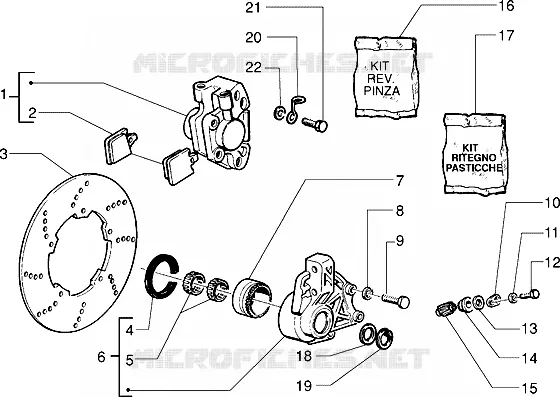

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
