Parts Catalog
FUEL TANK
6
Parts Diagram
Parts Catalog
DRIVEN PULLEY
by
STEERING BEARING BALL TRACKS

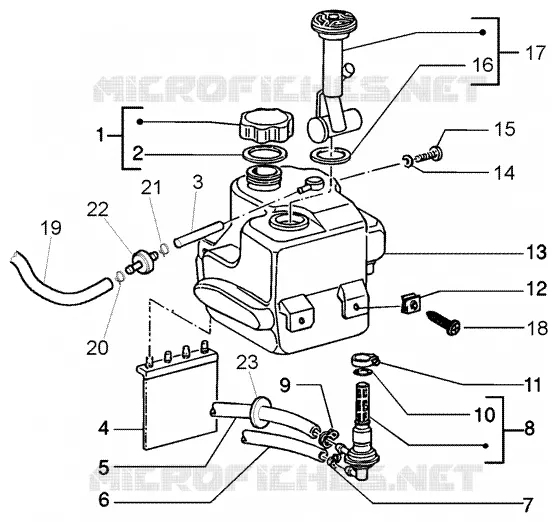

FUEL TANK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Plug
259832
£8,71 Unit Price incl. VAT
2
Tank cover gasket
258160
£4,51 Unit Price incl. VAT
3
pipe
CM001209
Not Available
4
Guard
295403
Not Available
5
Fuel tube
CM007606
£20,99 Unit Price incl. VAT
6
Breather pipe
CM001513
Not Available
7
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
8
Cock
575331
£22,92 Unit Price incl. VAT
9
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
10
Gasket
196868
£3,14 Unit Price incl. VAT
11
Hose clamp
577557
Not Available
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
Tank
574936
Not Available
14
Flat washer 16x6,5x1,5
013880
Not Available
15
screw
257403
Not Available
16
Gasket
258161
Not Available
17
Level gauge
257303
Not Available
18
Metric screw TBC
575249
£0,62 Unit Price incl. VAT
19
pipe
CM007504
Not Available
20
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
21
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
22
Safety valve
576748
£44,46 Unit Price incl. VAT
23
Ring
297378
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
