Parts Catalog
Crankcase
6

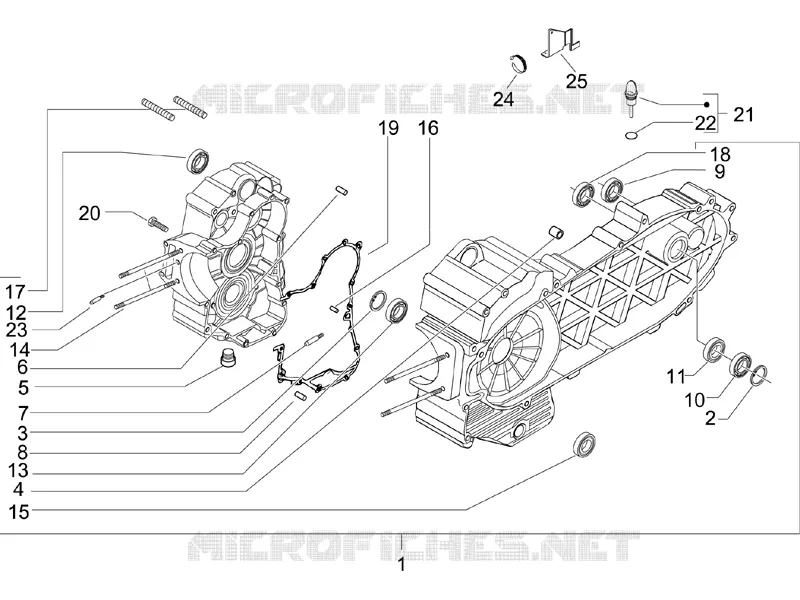

Parts Diagram
Parts Catalog
Engine, assembly
by
Crankshaft
Crankcase
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Crankcase assy. class 4
CM1145080004
Not Available
1
Crankcase assy. class 3
CM1145080003
Not Available
1
Crankcase class 2
CM1145080002
Not Available
1
Crankcase assy. class 1
CM1145080001
Not Available
2
Circlip 25x26.9x1.2
000674
Not Available
3
Circlip
006647
Not Available
4
Pin 6,5x9,5x15
239388
Not Available
5
Plug M12x1,5
411311
Not Available
6
Locating dowel Ø11x10
478115
Not Available
7
Nozzle
484034
£7,96 Unit Price incl. VAT
8
Locating dowel
484993
£1,16 Unit Price incl. VAT
9
Radial ball bearing 15x42x13
485912
Not Available
10
Bearing 52x25x15
825233
£7,82 Unit Price incl. VAT
11
Oil seal 25x40x7
825238
Not Available
12
Bearing 20x42x1
82656R
£11,81 Unit Price incl. VAT
13
Bearing
82668R
£28,49 Unit Price incl. VAT
14
Stud bolt M10X1.25X166
827951
Not Available
15
Gasket ring 35x47x7
873932
£18,82 Unit Price incl. VAT
15
Oil seal 35x47x7
829195
Not Available
16
Pin 6,5x9,5x15
239388
Not Available
17
Stud bolt M10X1,25X51
833513
Not Available
18
Radial ball bearing 20x47x14
833701
Not Available
19
Half crankcase gasket
828114
£17,16 Unit Price incl. VAT
19
Half crankcase gasket
872909
£20,69 Unit Price incl. VAT
20
Screw w/ flange M6x65
828909
Not Available
21
Complete oil level dipstick
832130
£5,47 Unit Price incl. VAT
22
Gasket ring 14,43x9,19x2,62
827085
£0,62 Unit Price incl. VAT
23
Nozzle
825649
£3,02 Unit Price incl. VAT
24
Hose clamp
564629
£3,49 Unit Price incl. VAT
25
Bracket
834911
£2,77 Unit Price incl. VAT
