1
Engine displacement
125
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog

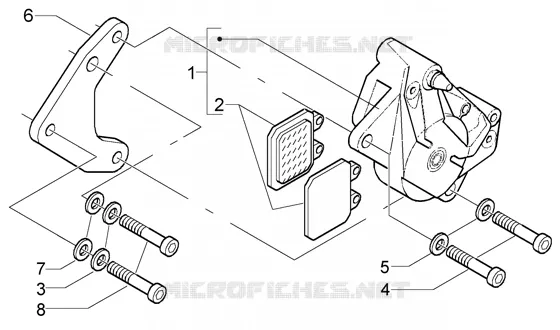

Brake calipers
6
Parts Diagram
Parts Catalog
Brake pipes
by
Front lights
Brake calipers
1
2
3
4
5
6
7
8
1
Rear brake caliper
56164R
Not Available
1
Brake caliper (Brembo)
CM067901
Not Available
1
Rear brake caliper (Brembo)
CM067904
Not Available
1
Front disk brake caliper r.h. Heng Tong
CM073503
£167,29 Unit Price incl. VAT
1
Front disk brake caliper l.h. Heng Tong
CM073501
£167,29 Unit Price incl. VAT
1
Brake caliper (Brembo)
CM067902
Not Available
1
Rear brake caliper (Brembo)
CM067907
Not Available
2
Brake pads kit
497394
Not Available
3
Washer
709110
Not Available
4
screw
598919
£0,58 Unit Price incl. VAT
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
Caliper support bracket
597578
Not Available
6
Caliper support bracket
599684
Not Available
7
Washer
709646
Not Available
7
Spring washer
709047
£0,70 Unit Price incl. VAT
8
screw
597150
£1,51 Unit Price incl. VAT
8
screw
564486
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
