Parts Catalog
Coolant radiator
6
Parts Diagram
Parts Catalog
Crankase
by
Case-helmet
Coolant radiator
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
16
17
18
19
1
Upper rubber
351782
£2,02 Unit Price incl. VAT
2
Spacer
273288
£1,87 Unit Price incl. VAT
3
Washer d6,2x20x1
013092
Not Available
4
Screw m6x30
271891
£1,28 Unit Price incl. VAT
4
Metric screw M6x20
259830
Not Available
5
Copper gasket
168077
£4,86 Unit Price incl. VAT
6
Thermal switch
581614
Not Available
6
Temperature gauge
584715
£39,49 Unit Price incl. VAT
7
Hose clamp
CM001907
£1,67 Unit Price incl. VAT
8
pipe
577537
£78,22 Unit Price incl. VAT
9
Lower rubber
258904
£1,54 Unit Price incl. VAT
10
pipe
620593
Not Available
11
Water cooler
57301R
£475,81 Unit Price incl. VAT
12
Fan engine
580922
Not Available
13
Lock-strap L=180mm
145298
£1,14 Unit Price incl. VAT
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT
15
Self tapping screw L=20 mm
267958
£0,76 Unit Price incl. VAT
16
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
17
Screw M6x16
272836
£1,13 Unit Price incl. VAT
18
Screw m6x30
015761
Not Available
19
Radiator grill closure
575576
Not Available

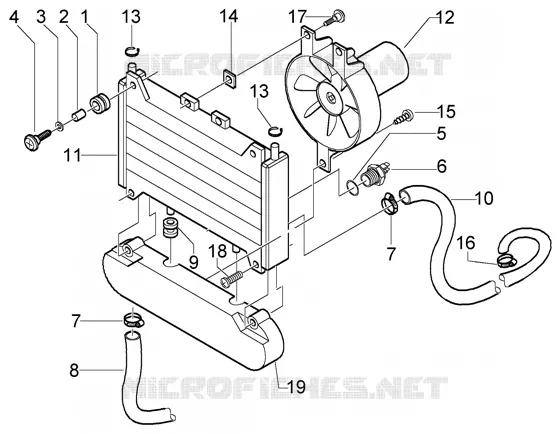

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
