Engine displacement
125
2
Model
X9
3
Year
0
4
Trim
X9 SL
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
by
Driven pulley
Carburettor
1
2
3
4
5
6
7
7
8
10
11
12
13
14
15
17
18
22
24
25
26
27
28
29
30
31
1
Circlip
826822
Not Available
2
Washer
826821
Not Available
3
Washer
826843
Not Available
4
Spring
826839
Not Available
5
Minimum adj. screw
CM106401
Not Available
5
Adj.min.eng.speed air screw
CM106402
Not Available
6
Starter
CM129802
Not Available
6
El. start device
827484
Not Available
6
El. start device
CM129801
Not Available
7
Special screw
826778
Not Available
8
Diaphragm Walbro
CM129701
£85,48 Unit Price incl. VAT
10
Float
826812
£47,70 Unit Price incl. VAT
11
Screw
826857
Not Available
12
screw
826770
Not Available
13
Float chamber
CM109809
Not Available
14
Pin
826811
Not Available
15
Petrol needle
826786
Not Available
17
Idle jet
CM105302
Not Available
18
Main jet
CM105409
£8,18 Unit Price incl. VAT
22
Plate
826781
Not Available
24
Conical pin
CM106505
Not Available
24
Conical needle 52k
826819
Not Available
25
Spring
826818
Not Available
26
Cup
826820
Not Available
27
Gas valve spring
CM107903
Not Available
28
Gas valve cover
827467
Not Available
29
screw
826780
Not Available
30
screw
826824
£14,95 Unit Price incl. VAT
31
Piston
CM114303
Not Available

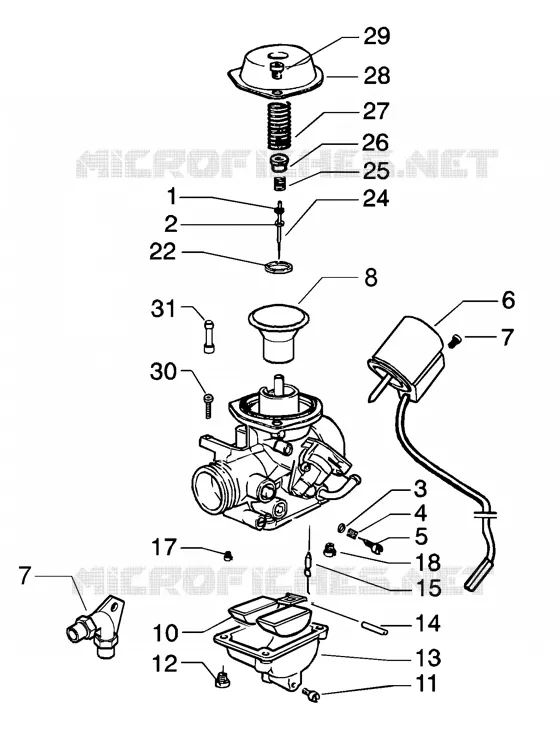

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
