Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Crankcase cooling
by
Belt cooling tube-intake tube
Flywheel magneto
1
2
3
4
5
6
7
8
11
12
13
14
17
18
18
19
20
21
22
23
24
25
26
27
1
Screw m5x22
015901
Not Available
2
Washer 5.3x10x10
006965
Not Available
3
Flanged nut M12
436783
Not Available
4
Rotor, assy. MITSUBA
584689
£170,23 Unit Price incl. VAT
4
Rotor, assy.
828090
Not Available
5
Stator
833697
Not Available
5
Stator
828135
Not Available
6
Transmission key
000267
Not Available
7
Cdi magneto assy
82653R
Not Available
7
Cdi magneto assy
58060R
Not Available
8
Cover
8403235
Not Available
8
Air deflector
8299615
Not Available
9
Screw M5x22
828662
£1,33 Unit Price incl. VAT
11
Cover
825529
£2,36 Unit Price incl. VAT
12
Gasket ring
485084
Not Available
12
Gasket ring
842595
Not Available
13
Ceramic insert
486216
Not Available
14
Ball bearing
827149
Not Available
15
screw
030251
Not Available
16
Water pump shaft assy.
827714
Not Available
17
Drive coupling
487459
Not Available
18
Water pump cover
486237
£26,18 Unit Price incl. VAT
19
O-ring
485080
£2,23 Unit Price incl. VAT
20
Screw M5x22
828662
£1,33 Unit Price incl. VAT
21
screw
828569
Not Available
22
Oil delivery pipe
840022
Not Available
22
Oil delivery pipe
827207
Not Available
23
Hose clamp
CM001908
£2,06 Unit Price incl. VAT
24
Water pump shaft assy.
827714
Not Available
25
screw
828493
£0,58 Unit Price incl. VAT
26
Washer 5.3x10x10
006965
Not Available
27
Washer
828535
£0,16 Unit Price incl. VAT

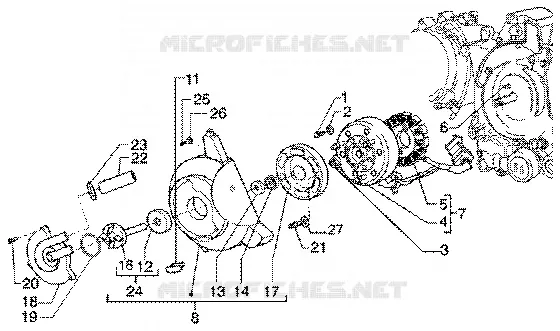

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
