1
Engine displacement
180
2
Model
X9
3
Year
0
4
Trim
X9 Amalfi
5
Parts Catalog
Swinging arm
6

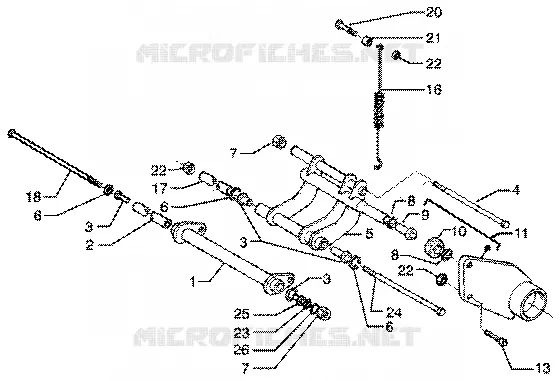

Parts Diagram
Parts Catalog
Chassis
by
Central stand
Swinging arm
1
2
3
3
3
4
5
6
6
6
7
7
8
8
9
10
11
13
16
17
18
20
21
22
22
22
23
24
25
26
1
Swinging arm
597503
Not Available
1
Swinging arm
601445
Not Available
2
Spacer
563271
Not Available
2
Spacer L=228 mm
CM067803
£16,27 Unit Price incl. VAT
3
Roller cage
597374
Not Available
3
Roller cage
56127R
£9,07 Unit Price incl. VAT
3
Bush
273773
£3,95 Unit Price incl. VAT
4
screw
597081
£13,28 Unit Price incl. VAT
5
Swinging arm
597502
£142,42 Unit Price incl. VAT
6
Oil seal
597140
Not Available
7
Nut
564878
£1,06 Unit Price incl. VAT
8
Circlip
006416
Not Available
9
Bush
273460
£0,98 Unit Price incl. VAT
10
Silent-block
272750
£44,05 Unit Price incl. VAT
11
Bracket
583000
Not Available
11
plate
599954
£342,36 Unit Price incl. VAT
13
Bolt
031153
Not Available
16
Connecting rod spring
597082
£9,18 Unit Price incl. VAT
16
Spring
597490
£7,63 Unit Price incl. VAT
17
Spacer
273765
Not Available
17
Spacer L=183 mm
CM067801
£17,98 Unit Price incl. VAT
18
Hex socket screw
597080
£26,93 Unit Price incl. VAT
20
screw
030101
Not Available
21
Spacer
562310
£4,50 Unit Price incl. VAT
22
Self locking nut M10
232108
Not Available
23
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
24
Hex screw M10x202
271807
£10,52 Unit Price incl. VAT
25
Bush
597079
£15,38 Unit Price incl. VAT
26
Washer
597230
£3,98 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
