Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Oil filter
by
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Roller cage 20x29x18
82518R
£29,20 Unit Price incl. VAT
2
Snap ring
483226
£1,87 Unit Price incl. VAT
3
Radial bearing 17x30
483261
Not Available
3
Bearing 17x30x7
82753R
£21,72 Unit Price incl. VAT
4
Sec. fixed sheave, complete
833669
Not Available
5
Guide pin L=12,5
828717
£1,50 Unit Price incl. VAT
6
Sec. sliding sheave, complete
833672
Not Available
7
Gasket ring
431089
£8,58 Unit Price incl. VAT
8
Gasket
430585
£0,88 Unit Price incl. VAT
9
Cup
833674
£31,13 Unit Price incl. VAT
10
Variator spring
833673
£11,71 Unit Price incl. VAT
11
Clutch side cap
487936
£8,76 Unit Price incl. VAT
12
Clutch, assy.
840312
Not Available
13
Ring nut
433232
£13,28 Unit Price incl. VAT
14
Clutch drum
82751R
Not Available
14
Clutch drum
82517R
Not Available
14
Clutch drum
844049
Not Available
15
Secondary pulley
82745R
Not Available
15
Pulley
82725R
Not Available
16
Nut M12x1.25
486324
£1,04 Unit Price incl. VAT
17
Spacer
827877
Not Available
18
Flat washer 22x12,1x1
274246
£1,00 Unit Price incl. VAT
19
Fan
482305
£7,19 Unit Price incl. VAT

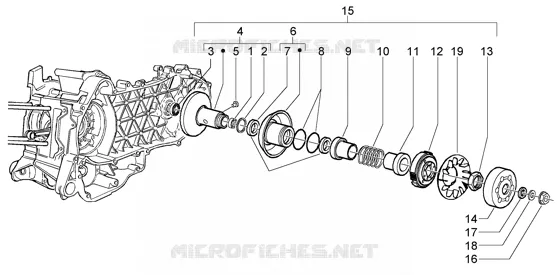

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
