Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Air filter
by
Secondary air box
Engine
1
2
3
1
Engine
CM1425045
Not Available
1
Engine
CM1425065
Not Available
2
Gask. set thermic unit
497421
Not Available
3
Oil seal and gask. set
497422
Not Available

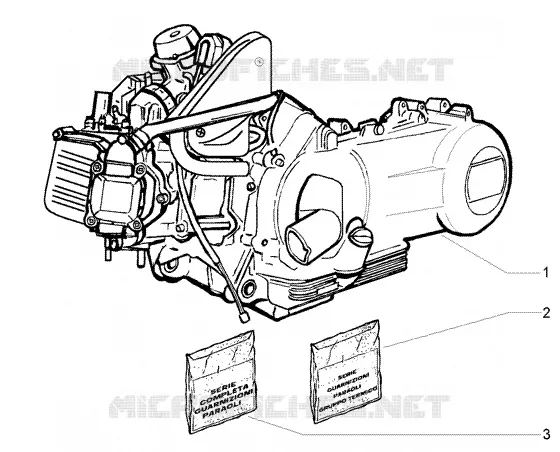

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
