Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Fork
by
Dampers
Swinging arm
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Swinging arm
598076
£97,67 Unit Price incl. VAT
2
Spacer
597839
Not Available
3
Ball bearing
597844
Not Available
4
Snap ring
006635
Not Available
5
Roller cage
597835
Not Available
6
Self locking nut M10
232108
Not Available
7
Washer 10,3x38x3
179326
£1,32 Unit Price incl. VAT
8
Lower buffer
178149
£3,59 Unit Price incl. VAT
9
Nut m12x1,25 h=12,5
261319
£1,69 Unit Price incl. VAT
10
Plain washer 12,5x34x3
227199
£6,20 Unit Price incl. VAT
11
Nut m22x2 h=8
564611
£4,70 Unit Price incl. VAT
12
screw
597836
Not Available
13
Bushing
597833
£18,47 Unit Price incl. VAT
14
Nut m12x1,25 h=12,5
261319
£1,69 Unit Price incl. VAT
15
Washer
013962
Not Available
16
Tie rod assembly
598068
Not Available
17
Pad
597262
£14,74 Unit Price incl. VAT
18
Cup
597837
Not Available
19
Nut
975695
£2,18 Unit Price incl. VAT
20
Shaft
597838
Not Available
21
Washer
709037
£0,58 Unit Price incl. VAT
22
Washer
597868
Not Available
23
Engine ward
5767574
Not Available
24
Bolt
031153
Not Available
25
Washer
709646
Not Available

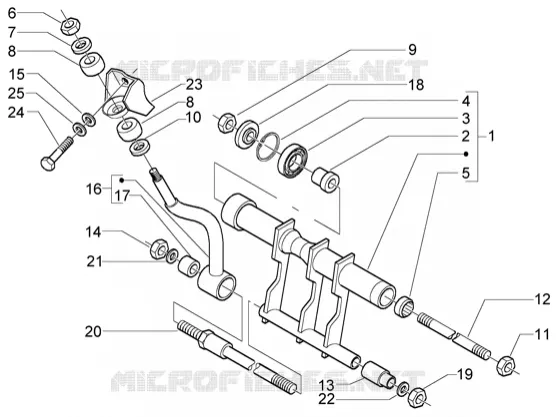

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
