Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution (ABS)
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Rear wheel
by
Head-valves
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
9
10
11
12
1
Cylinder with piston
832811
Not Available
2
Piston assy cat4
8328120004
Not Available
2
Piston assy
8328120001
Not Available
2
Piston assy cat2
8328120002
Not Available
2
Piston assy cat3
8328120003
Not Available
3
Stop ring
828116
£1,00 Unit Price incl. VAT
4
Piston pin
827820
£18,74 Unit Price incl. VAT
5
Oil scraper ring d.92x2,5
827707
Not Available
6
Oil scraper ring d.92
827706
£26,63 Unit Price incl. VAT
7
Ring
832770
£57,24 Unit Price incl. VAT
8
Cylinder base gasket 0,6
830276
£16,46 Unit Price incl. VAT
8
Cylinder base gasket 0,4
830277
£16,39 Unit Price incl. VAT
8
Cylinder base gasket 0,8
830275
£16,39 Unit Price incl. VAT
9
Gasket
834254
Not Available
10
Screw w/ flange M6x16
434541
Not Available
11
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
12
Flat washer
178790
£1,64 Unit Price incl. VAT

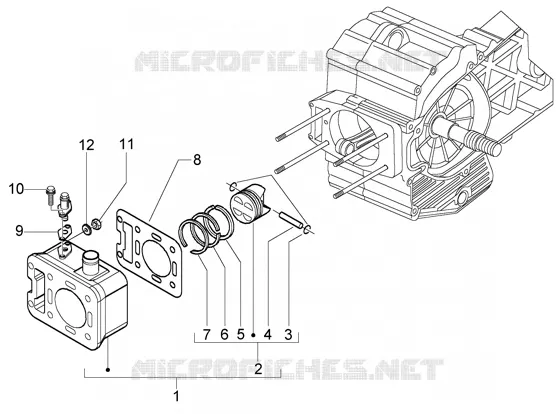

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
