1
Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog

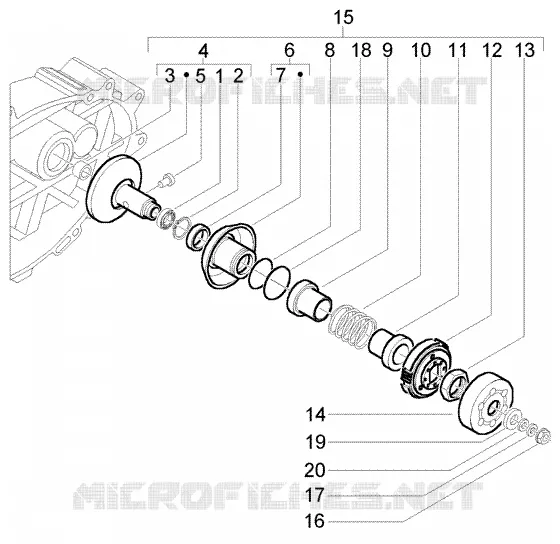

Driven Pulley
6
Parts Diagram
Parts Catalog
Driving Pulley
by
Driven Pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Radial bearing
82627R
£26,41 Unit Price incl. VAT
2
Snap ring
825382
£4,81 Unit Price incl. VAT
3
Roller cage 25x33x18
829808
£31,60 Unit Price incl. VAT
4
Fixed driven half pulley
832774
Not Available
5
Clutch bush pin
828978
Not Available
6
Adjustable pulley, half
832808
Not Available
7
Oil seal 50x57x5
825239
£8,40 Unit Price incl. VAT
8
Gasket
825237
£1,96 Unit Price incl. VAT
9
Cup
828974
£13,54 Unit Price incl. VAT
10
Spring
831098
£38,83 Unit Price incl. VAT
11
New cup type
825384
£3,79 Unit Price incl. VAT
12
Centrifugal clutch assy 5M
8405775
£162,64 Unit Price incl. VAT
13
Ring nut 44x1
825385
£13,96 Unit Price incl. VAT
14
Complete clutch drum
825176
Not Available
15
Pulley
842559
Not Available
16
Nut M14x1,5
827116
£2,12 Unit Price incl. VAT
17
Flat washer
840319
£1,85 Unit Price incl. VAT
18
Gasket
828984
£3,29 Unit Price incl. VAT
19
Spacer 26x17x3
825763
Not Available
20
Washer
840320
£2,39 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
