Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Chasis
6
Parts Diagram
Parts Catalog
Air Filter
by
Central Stand
Chasis
1
2
3
4
4
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
19
19
1
Frame
6209295
Not Available
2
Frame
6210465
Not Available
3
Screw m6x55
030059
Not Available
4
Washer 6,2x18x2
013950
Not Available
5
Spring washer 6,4x11,8x1
016406
Not Available
6
Nut M6
020106
Not Available
7
Pin L..H.
CM0102034
Not Available
8
Screw m8x18 zn
031117
Not Available
9
Pin r.h.
CM0102024
£22,36 Unit Price incl. VAT
10
Screw m6x55
030059
Not Available
11
Rear frame
5755444
Not Available
12
Nut M8x6,5
020108
Not Available
13
Spring washer 13,75x8,15x4,5
016408
Not Available
14
Hex screw M8x22
031119
Not Available
15
Lock support
575357
£68,69 Unit Price incl. VAT
16
Flat washer 8,4x18x2
003038
Not Available
17
lower front frame bracket
6208695
Not Available
18
screw M6x16
031088
Not Available
19
Flat washer 6,4x12x1
003056
Not Available

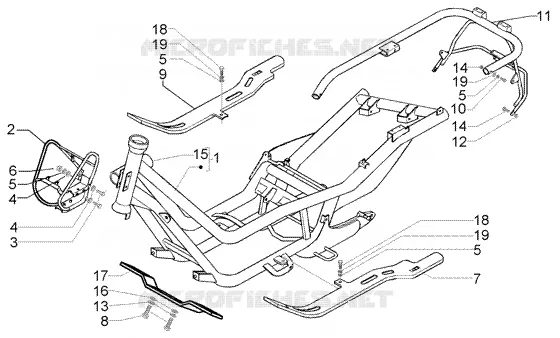

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
