Parts Catalog
Brake Pipes-Brake Calipers
6
Parts Diagram
Parts Catalog
Handlebar-Brake Pump
by
Crankshaft
Brake Pipes-Brake Calipers
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
12
12
12
13
13
13
14
15
17
18
18
18
18
18
18
18
18
20
20
21
22
23
24
25
26
27
27
28
29
1
Brake caliper
CM072501
Not Available
1
Brake caliper
CM072502
Not Available
2
Brake caliper
56167R
Not Available
3
Brake pads kit
497394
Not Available
4
screw M8x30
015792
Not Available
5
Spring washer
709047
£0,70 Unit Price incl. VAT
6
Brake pads kit
497396
Not Available
7
Spring washer
709047
£0,70 Unit Price incl. VAT
8
Hex socket screw M8x50
844483
£0,65 Unit Price incl. VAT
9
screw
598919
£0,58 Unit Price incl. VAT
10
Spring washer
709047
£0,70 Unit Price incl. VAT
11
Caliper support bracket
598060
Not Available
12
Oil pipe screw M10x18
265451
£4,94 Unit Price incl. VAT
13
Spring washer 6,4x11x0,5
006966
Not Available
14
screw
812592
Not Available
15
screw M6x35
414838
£1,27 Unit Price incl. VAT
16
Screw m6x12
031086
Not Available
17
Hose clamp
597395
Not Available
18
Gasket
127927
£1,04 Unit Price incl. VAT
19
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
20
Fairlead
274350
Not Available
21
Hex socket screw
122675
£0,38 Unit Price incl. VAT
22
Rear brake stiff pipe
600876
£28,24 Unit Price incl. VAT
23
BREAK PIPES
599545
£46,57 Unit Price incl. VAT
24
BREAK PIPES
599514
£45,89 Unit Price incl. VAT
25
Brake pipe (valve-pump)
564784
Not Available
26
BREAK PIPES
599515
Not Available
27
Hose clamp
482290
Not Available
28
Valve
56122R
Not Available
29
Joint
597033
£27,38 Unit Price incl. VAT

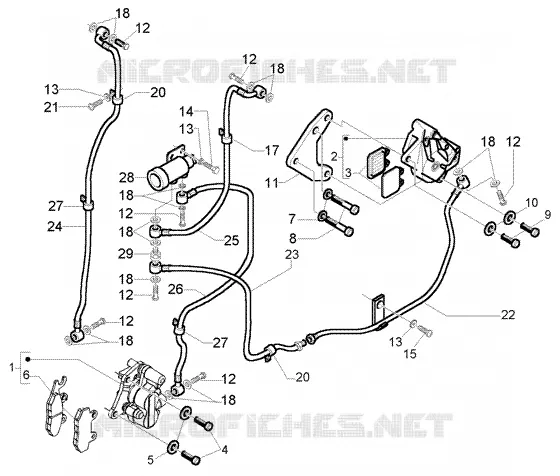

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
