1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip Fast Rider RST
5
Parts Catalog

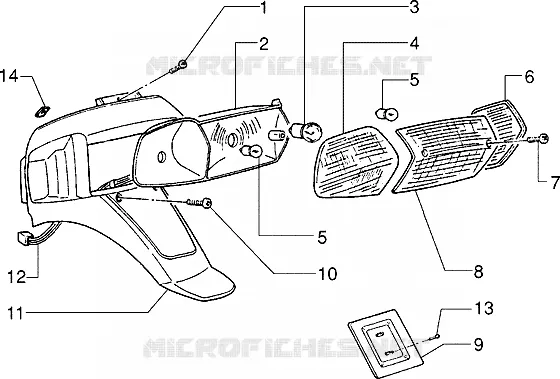

Rear tail lamp
6
Parts Diagram
Parts Catalog
Headlamp
by
Electrical devices
Rear tail lamp
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
1
Metric screw TBC
259348
£1,04 Unit Price incl. VAT
2
Reflector
291859
Not Available
3
Lamp 12V-21/5W
129953
£3,48 Unit Price incl. VAT
4
Glass
291856
Not Available
5
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
6
Glass
291857
Not Available
7
Self-tap screw
250623
Not Available
8
Glass
291858
Not Available
9
Number plate holder
291868
Not Available
9
Number plate holder
291597
Not Available
9
Number plate holder support
2924654
£19,79 Unit Price incl. VAT
10
Metric screw M6x20
259830
Not Available
11
Guard
272379
Not Available
12
Cable harn.
292074
£11,77 Unit Price incl. VAT
13
Rivet
273074
£2,45 Unit Price incl. VAT
14
Spring plate M6
254485
£1,64 Unit Price incl. VAT
15
Plain washer 5,4x10x0,8
003055
Not Available
16
Spring washer 8,5x5,1x1,5
016405
Not Available
17
Nut
020105
Not Available
18
Self-tapping screw M5x12
015585
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
