1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip Fast Rider RST
5

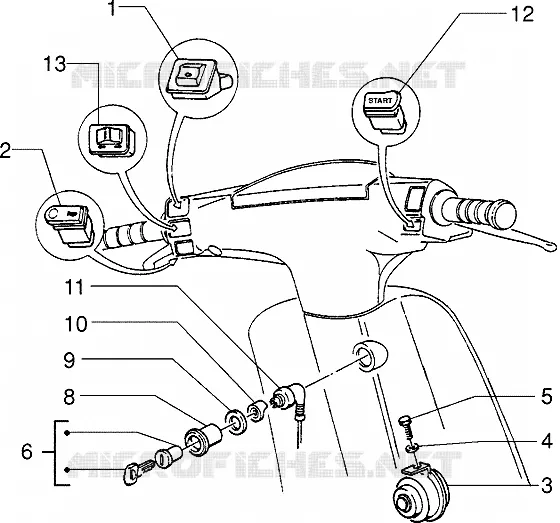

Parts Catalog
Electrical devices
6
Parts Diagram
Parts Catalog
Rear tail lamp
by
Crankshaft
Electrical devices
1
2
3
4
5
6
8
9
10
11
12
13
1
Lights switch
290688
Not Available
2
Button
292364
£12,61 Unit Price incl. VAT
3
Horn 12v
294829
Not Available
4
Spring washer 6,4x11,8x1
016406
Not Available
5
Screw m6x12
031086
Not Available
6
Cyl.unit
295652
£24,78 Unit Price incl. VAT
8
Lock body
297777
Not Available
9
Plate
178559
£0,77 Unit Price incl. VAT
10
Push bot.b.
259421
Not Available
11
Key oper. switch
292071
£28,63 Unit Price incl. VAT
12
Start pushbutton
294398
£11,20 Unit Price incl. VAT
13
Turn signal lamps switch
294917
£12,68 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
