1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip Fast Rider RST
5
Parts Catalog
Air cleaner
6
Parts Diagram
Parts Catalog
Carburettor
by
Silencer
Air cleaner
10
11
12
13
1
2
3
7
14
1
Air cleaner
478540
Not Available
2
Gasket
478535
Not Available
3
Filtering element
478536
Not Available
7
Self-tap screw
478533
£0,98 Unit Price incl. VAT
10
Gasket
478534
Not Available
11
Box
480398
Not Available
12
Gasket
480373
Not Available
13
Spring plate
181351
£0,98 Unit Price incl. VAT
14
Bellows
431910
£20,46 Unit Price incl. VAT

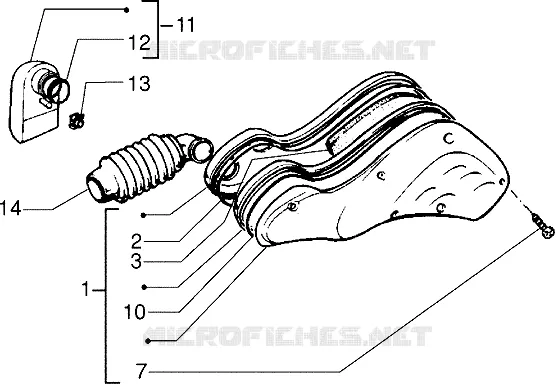

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
