1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip Fast Rider RST
5
Parts Catalog
Driving pulley
6
Parts Diagram
Parts Catalog
Driven pulley
by
Rear wheel shaft
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Spacer
2898282
Not Available
2
Toothed pulley
286158
£10,48 Unit Price incl. VAT
3
screw
015947
Not Available
4
Spring washer
006964
Not Available
5
Cover
289932
Not Available
6
Compensator ring
289926
Not Available
7
Sliding block
289931
£1,14 Unit Price incl. VAT
8
Housing
289930
£14,38 Unit Price incl. VAT
9
Roller
436080
£29,88 Unit Price incl. VAT
9
Rollers kit
2899275
£16,30 Unit Price incl. VAT
10
Spacer
289829
£30,30 Unit Price incl. VAT
11
Pulley
436081
Not Available
11
Not available
430189
Not Available
12
Spacer
CM100609
£2,36 Unit Price incl. VAT
12
Spacer
278923
Not Available
13
Pulley, half
289831
Not Available
14
Belt
431190
£22,22 Unit Price incl. VAT
15
Elastic spring
830212
Not Available
16
Fan
287044
Not Available
17
Bush
433862
Not Available
18
Flanged nut M10x1,25
289519
£1,27 Unit Price incl. VAT
19
Pinion starter
483537
£28,58 Unit Price incl. VAT

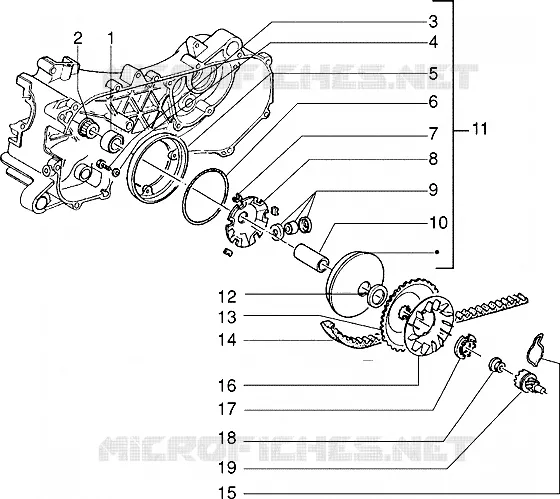

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
