1
Engine displacement
50
2
Model
ZIP
3
Year
0
4
Trim
Zip SP H2O
5
Parts Catalog

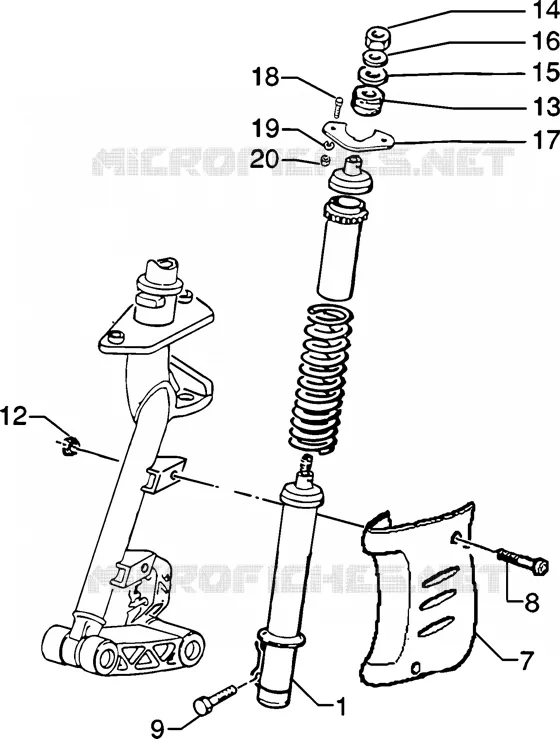

Front shock absorber cover
6
Parts Diagram
Parts Catalog
Steering column - Disc brake
by
Rear shock absorber
Front shock absorber cover
1
7
8
9
12
13
14
15
16
17
18
19
20
1
Shock absorber
598922
£168,82 Unit Price incl. VAT
1
Shock absorber
56072R
Not Available
7
Tyre
564991000C
£22,50 Unit Price incl. VAT
8
Metric screw M6x20
259830
Not Available
9
Hex socket screw M8x40
149104
£1,57 Unit Price incl. VAT
12
Self locking nut M6
288245
£0,76 Unit Price incl. VAT
13
Pad
216209
£1,81 Unit Price incl. VAT
14
Nut
021210
Not Available
15
Washer
174088
£1,62 Unit Price incl. VAT
16
Washer
012535
Not Available
17
Bracket
562305
£13,00 Unit Price incl. VAT
18
Hex screw M8x22
031119
Not Available
19
Spring washer 13,75x8,15x4,5
016408
Not Available
20
Nut M8x6,5
020108
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
