Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Windshield - Glass
Handlebars coverages
1
2
3
4
4
5
5
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
1
front handlebar cover
65324400DF
Not Available
1
front handlebar cover
65538100EU
Not Available
1
front handlebar cover
65538100AL
Not Available
1
Front handlebar cover
65324400AF
Not Available
1
Front handlebar cover
655381
Not Available
1
front handlebar cover
65538100DE
Not Available
1
Front handlebar cover
65324400GP
Not Available
1
front handlebar cover
65538100M4
Not Available
1
front handlebar cover
65538100F2
Not Available
1
front handlebar cover
65324400AG
Not Available
1
front handlebar cover
65538100XN2
Not Available
1
front handlebar cover
65538100ND
Not Available
2
LH pump cover
65324700AF
Not Available
2
LH pump cover
65324700DE
£14,12 Unit Price incl. VAT
2
LH pump cover
65324700AL
Not Available
2
LH pump cover
653247
£5,88 Unit Price incl. VAT
2
LH pump cover
65324700EU
£14,12 Unit Price incl. VAT
2
LH pump cover
65324700M4
Not Available
2
LH pump cover
65324700GP
Not Available
2
LH pump cover
65324700XN2
£14,12 Unit Price incl. VAT
2
LH pump cover
65324700F2
Not Available
2
LH pump cover
65324700DF
Not Available
2
LH pump cover
65324700ND
£14,12 Unit Price incl. VAT
2
LH pump cover
65324700AG
Not Available
3
RH pump cover
65324800EU
£14,12 Unit Price incl. VAT
3
RH pump cover
65324800M4
Not Available
3
RH pump cover
65324800ND
Not Available
3
RH pump cover
65324800F2
Not Available
3
RH pump cover
653248
£5,88 Unit Price incl. VAT
3
RH pump cover
65324800DF
Not Available
3
RH pump cover
65324800AG
Not Available
3
RH pump cover
65324800AL
Not Available
3
RH pump cover
65324800GP
£14,12 Unit Price incl. VAT
3
RH pump cover
65324800DE
£14,12 Unit Price incl. VAT
3
RH pump cover
65324800XN2
Not Available
3
RH pump cover
65324800AF
Not Available
4
Plate
CM017418
£1,27 Unit Price incl. VAT
5
Hex socket screw
581957
£0,30 Unit Price incl. VAT
6
Spring plate
CM017409
£1,27 Unit Price incl. VAT
7
Screw M4,2x13
259349
£0,79 Unit Price incl. VAT
8
Self tapping screw M4x16
267115
£0,62 Unit Price incl. VAT
9
Self tapping screw M4x16
267115
£0,62 Unit Price incl. VAT
10
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
11
TBCIC Screw
270793
£0,52 Unit Price incl. VAT
12
Cap
125998
£1,64 Unit Price incl. VAT
13
Handlebar rear cover
653245000C
Not Available
14
Instrument group cover
65324600DE
Not Available
14
Instrument group cover
65324600ND
Not Available
14
Tools cover
65324600XN2
Not Available
14
Instrument group cover
65324600AL
Not Available
14
Instrument group cover
65324600EU
£62,66 Unit Price incl. VAT
14
Instrument group cover
65324600ET
£62,66 Unit Price incl. VAT
14
Instrument group cover
65324600M4
Not Available
15
Self tapping screw M4x16
267115
£0,62 Unit Price incl. VAT
16
Spring plate
CM017410
£0,71 Unit Price incl. VAT
17
Guard
583282
£5,08 Unit Price incl. VAT

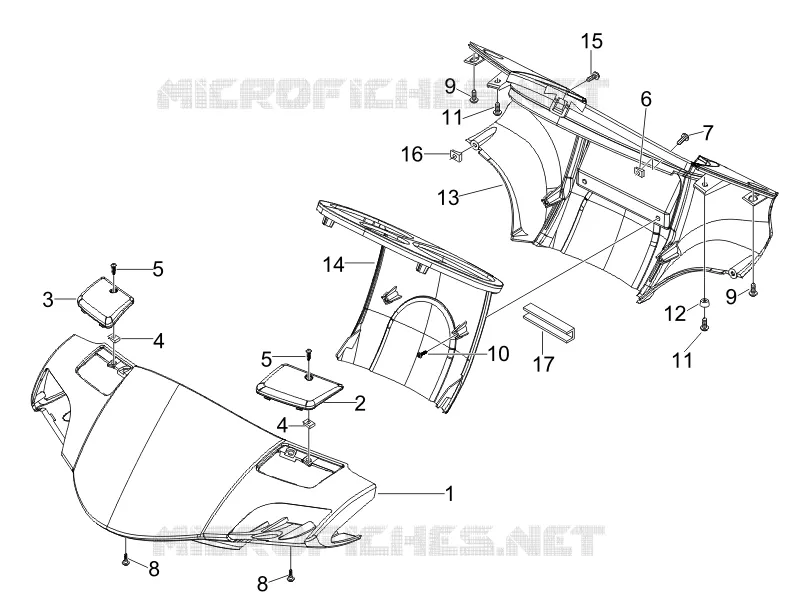

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
