Engine displacement
125
2
Model
LIBERTY
3
Year
2012
4
Trim
Liberty 4T PTT E3 (E)
5
Parts Catalog
Fuel tank
6

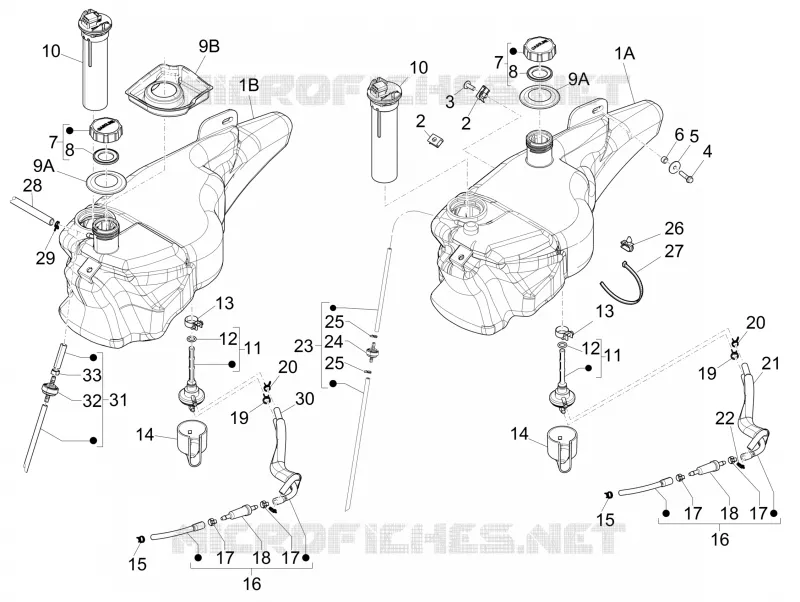

Parts Diagram
Parts Catalog
Fork's components (Escorts)
by
Flywheel magneto cover - Oil filter
Fuel tank
1A
1B
2
2
3
4
5
6
7
7
8
8
9A
9A
9B
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
17
17
18
18
19
19
20
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
1A
Fuel tank
1B001828
£225,74 Unit Price incl. VAT
1A
Fuel tank
657012
£251,33 Unit Price incl. VAT
1B
Fuel tank
621325
£176,65 Unit Price incl. VAT
2
Spring plate M6
254485
£1,64 Unit Price incl. VAT
3
Screw M6x16
272836
£1,13 Unit Price incl. VAT
4
Screw w/ flange M6x25
B016774
£1,27 Unit Price incl. VAT
5
Flat washer
270216
£0,65 Unit Price incl. VAT
6
Spacer
622306
£1,15 Unit Price incl. VAT
7
Plug
259832
£8,71 Unit Price incl. VAT
8
Tank cover gasket
258160
£4,51 Unit Price incl. VAT
9A
Float chamber
622235
£12,67 Unit Price incl. VAT
9B
Float chamber
1B001831
£7,13 Unit Price incl. VAT
10
Indicator fuel level
CM086810
£101,72 Unit Price incl. VAT
11
Depression tap
674594
£19,48 Unit Price incl. VAT
12
Gasket
196868
£3,14 Unit Price incl. VAT
13
Hose clamp
577557
Not Available
14
Cover
576725
£5,94 Unit Price incl. VAT
15
Hose clamp
CM002902
£0,62 Unit Price incl. VAT
16
Complete vacuum pipe
654760
£30,50 Unit Price incl. VAT
17
Hose clamp
CM001912
Not Available
18
Vacuum filter
624522
£5,26 Unit Price incl. VAT
19
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
20
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
21
pipe
CM001209
Not Available
22
Hose clamp
CM001912
Not Available
23
Complete breather pipe
657294
£81,00 Unit Price incl. VAT
24
Safety valve
576748
£44,46 Unit Price incl. VAT
25
Hose clamp
CM002908
£1,27 Unit Price incl. VAT
26
Hose clamp
217280
Not Available
27
Lock-strap L=277
257134
£0,48 Unit Price incl. VAT
28
Fuel pipe
CM006105
£15,66 Unit Price incl. VAT
29
Hose clamp
CM002901
£0,62 Unit Price incl. VAT
30
pipe L=1050 mm
CM178409
£57,11 Unit Price incl. VAT
31
Complete breather pipe
1B001856
£47,70 Unit Price incl. VAT
32
Safety valve
576748
£44,46 Unit Price incl. VAT
33
Hose clamp
CM001914
£1,57 Unit Price incl. VAT
