Oil pump for Liberty iGet 4T 3V ie ABS from 2016

Free shipping for all orders to United Kingdom over £150! See conditions.

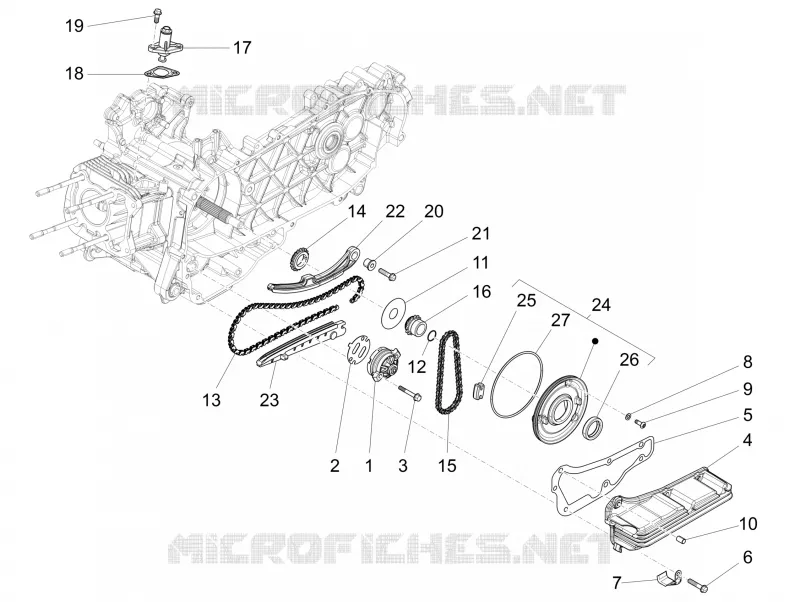

Oil pump

1

Oil pump assembly

82948R

£130,91 Unit Price incl. VAT

2

Oil pump/crankcase gasket

B015460

£1,00 Unit Price incl. VAT

3

Screw w/ flange M5x35

829593

£1,27 Unit Price incl. VAT

4

Pan oil

B013437

£40,43 Unit Price incl. VAT

5

Sump gasket

B014152

£6,98 Unit Price incl. VAT

6

Screw w/ flange M6x30

B016792

£1,27 Unit Price incl. VAT

7

Hose clamp

1C001517

£3,77 Unit Price incl. VAT

8

Plain washer

487937

Not Available

9

Hex socket screw M5x14

B016455

£1,27 Unit Price incl. VAT

10

Locating dowel Ã˜7,5x12

277916

£6,38 Unit Price incl. VAT

11

Oil seal washer

B015450

£2,42 Unit Price incl. VAT

12

O-Ring seal ring

B015451

£7,70 Unit Price incl. VAT

13

Camshaft chain

1A003586R

£17,42 Unit Price incl. VAT

14

Timing chain pinion

82782R

£22,31 Unit Price incl. VAT

15

Oil pump chain

B015459

£8,90 Unit Price incl. VAT

16

Oil pump control pinion

82783R

£22,50 Unit Price incl. VAT

17

Chain tensioner bracket

289919

Not Available

18

Cylinder/chain tensioner gasket

B015444

£1,16 Unit Price incl. VAT

19

Screw w/ flange M6x16

B016777

£1,27 Unit Price incl. VAT

20

Chain tensioner rod spacer

B015445

Not Available

21

Screw w/ flange M6x25

1A000350

£1,76 Unit Price incl. VAT

22

Chain tensioner rod

1A000796

£18,07 Unit Price incl. VAT

23

Chain tensioner sliding block

879459

£8,84 Unit Price incl. VAT

24

Timing system cover

1A0033175

£84,22 Unit Price incl. VAT

24

Timing system cover

B0154155

Not Available

25

Oil pump chain drift

434345

£7,32 Unit Price incl. VAT

26

Gasket ring 24x35x7

B015448

Not Available

27

O-Ring seal ring

B015449

£5,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
