Engine displacement
250
2
Model
CARNABY
3
Year
2008
4
Trim
Carnaby 4T ie E3
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Rear suspension - Shock absorber/s
Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Flywheel cover cpl.
8483785
Not Available
2
Timing plug assembly
829040
Not Available
3
O-ring
479986
Not Available
4
Water pump impeller cpl.
844730
£12,84 Unit Price incl. VAT
5
Gasket ring
842595
Not Available
6
Water pump shaft assy.
8447595
£57,52 Unit Price incl. VAT
7
Gasket ring 20x30x5
82897R
£12,89 Unit Price incl. VAT
8
Pump impeller drive key
842389
£31,21 Unit Price incl. VAT
9
screw
844160
Not Available
10
Plate
848109
£1,52 Unit Price incl. VAT
11
screw M6x35
414838
£1,27 Unit Price incl. VAT
12
Retainer plate
655511
Not Available
13
Screw w/ flange
484123
£0,54 Unit Price incl. VAT
14
Washer
012528
Not Available
15
Flywheel housing cover gasket
840504
£10,57 Unit Price incl. VAT
16
Oil pressure sensor
82580R
Not Available
17
Washer 10.5X16X2.5
486075
£1,32 Unit Price incl. VAT
18
Oil filter plug
82823R
Not Available
18
Oil filter plug
826165
£22,13 Unit Price incl. VAT
19
O-ring 31,47x1,78
285536
£1,64 Unit Price incl. VAT
20
Intake oil filter
843568
£5,87 Unit Price incl. VAT
21
O-ring 20,35x1,78
288474
£0,52 Unit Price incl. VAT
22
Oil filter
82635R
Not Available
23
Oil filter special screw
840507
£10,91 Unit Price incl. VAT

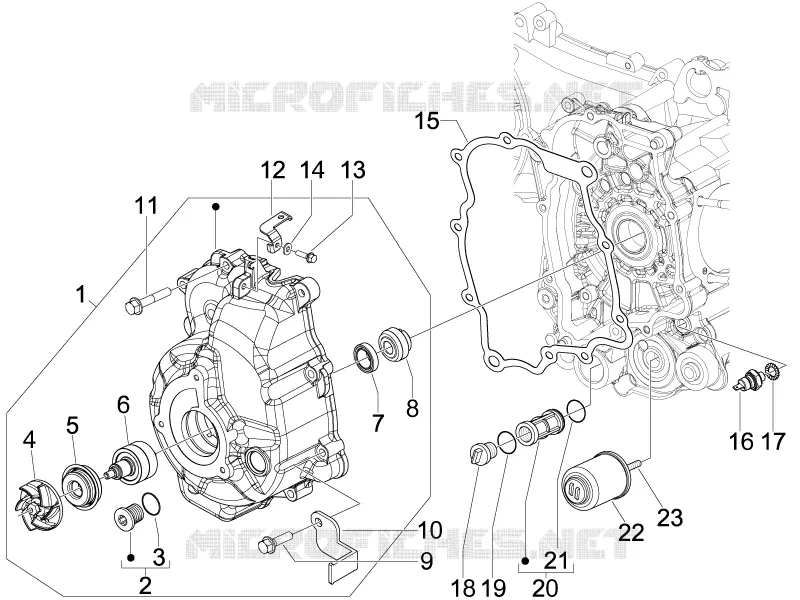

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
