1
Engine displacement
350
2
Model
BEVERLY
3
Year
2017
4
Trim
Beverly 4T ST ie ABS E4
5
Parts Catalog
Flywheel magneto cover - Oil filter
6
Parts Diagram
Parts Catalog
Rear cover - Splash guard
by
Throttle body - Injector - Union pipe

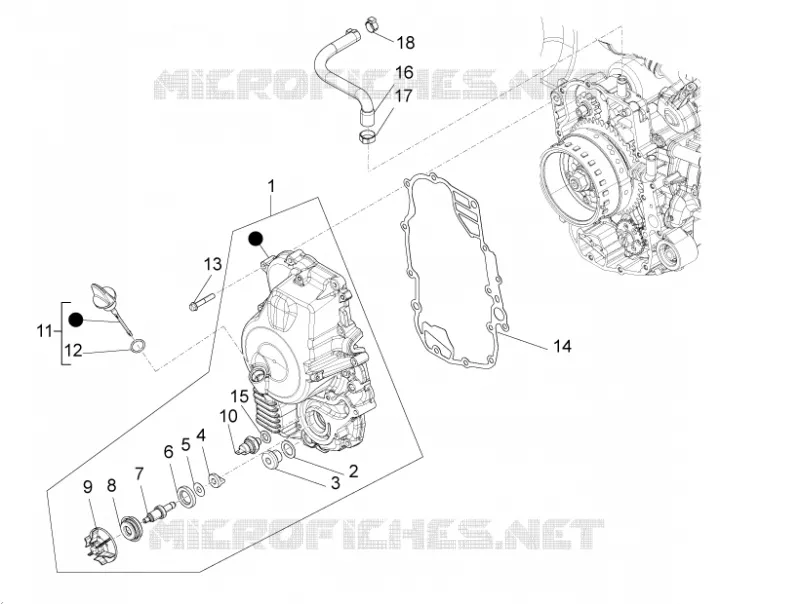

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Flywheel cover cpl.
8787565
Not Available
2
Copper gasket
287174
£2,28 Unit Price incl. VAT
3
Oil unload plug
1A000139
£15,59 Unit Price incl. VAT
4
Drive coupling
B014573
£11,98 Unit Price incl. VAT
5
Flat washer
878766
£12,94 Unit Price incl. VAT
6
Gasket ring
B016998
£19,73 Unit Price incl. VAT
7
Water pump shaft assy.
B014574
£90,04 Unit Price incl. VAT
8
Gasket ring
82991R
£27,28 Unit Price incl. VAT
9
Water pump impeller cpl.
B013969
£9,40 Unit Price incl. VAT
10
Minimum oil pressure sensor
643090
Not Available
11
Oil plug assembly
880725
£7,00 Unit Price incl. VAT
12
O-ring
479986
Not Available
13
screw M6x35
414838
£1,27 Unit Price incl. VAT
14
Flywheel housing cover gasket
B019459
£14,35 Unit Price incl. VAT
15
Washer 10,5x17x1,5
AP9150472
£2,22 Unit Price incl. VAT
16
Oil breather pipe
B013014
Not Available
17
Hose clamp
CM001921
£3,67 Unit Price incl. VAT
18
Hose clamp
CM001902
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
